Transform Your Audio Experience with a Unique 8-Channel Wireless System
Elevate your sound system with the powerful, versatile 8-channel wireless solution, designed for houses of worship and rental companies that demand seamless audio delivery. Featuring multiple handheld microphones for background use and a premium dual-ear headset microphone for your central speaker, this system ensures crystal-clear sound and flawless performance every time.
Featuring our crystal clear Titanium Series dual-ear headset that is perfect for a featured presenter paired with 7 wireless handheld mics.
Packed into a rugged 10-space rolling flight case, this robust setup keeps every component secure and ready to go, whether you're on the move or setting up for a major event. The easy-to-transport flight case makes setup a breeze, while the unmatched flexibility of 8 channels delivers the coverage you need for even the most demanding environments.
Perfect for houses of worship and high-demand wireless rental services, this system offers an all-in-one solution to take your audio experience to the next level. Plus, it's available in multiple configurations to suit your exact needs.
Ready for the big leagues? Upgrade your audio with this complete, rock-solid wireless microphone system today!
System Includes:
4 Airwave Technologies AT-5200 Dual Channel Wireless Systems
1 HSD Titanium Slim Clip System Dual Ear Wireless Headset in Tan or Black
1 AT-U52 Wireless Bodypack
7 AT-U51 Wireless Handheld Microphones
1 AT-LAV2 Lavalier Microphone
Furman M-8Lx Power Conditioner with Lights
ANT-001 Rack Mount Antenna Distro
RF Venue Diversity Omni™ Antenna
2 Band-Pass Filters
2 25ft Antenna Cables
7 Wireless Microphone Clips
10 Space Flight Rack with Casters
2 Two Space Rack Drawers with Diced Foam
514-542 MHz
FCC Tested and Approved: FCC ID 2AINTU-51
*Microphone stand for RF Venue DFIN not included
Wireless Microphone System Features
144 Digital switchable UHF Channels
Infrared Data Synchronization
Auto Button for Fast Frequency Sweep
Digital Adjustable Volume, Squelch and Gain Control
Battery Indicators on Handhelds and Base Station
Uses 2 AA batteries for up to 10 Hours of continuous use
System uses one rack space
1/4" and XLR mix outputs
Separate XLR channel output
AT-5200 Wireless Microphone Receiver Features
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Band Width: 19MH / 28MHz
Working Range: 328'
Receiving Sensitivity: < -92dBm for 30dB S/N Ra
Frequency Response: 50Hz-15KHz (±3dB)
Maximum Frequency Offset: >+/-50KHz
Signal to Noise Ratio: >1 00dB (A)
THO: <1 % to 1 KHz
Gain Control Range: 0 to 63dB per 1dB Step
Dynamic Range: >102dB
Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV
Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector
Impedance: XLR: 3KO / 1/4-inch connector: 3KO
Antenna Connectors: 2 BNC 500
Display: LCD
Power Requirements: 12V/0.5A DC
Operating Temperature Range: 28°F - 122°F
Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)
Weight: 3.86 lb.
FCC ID: 2AINTU-51
AT-U51 Handheld Microphone Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz

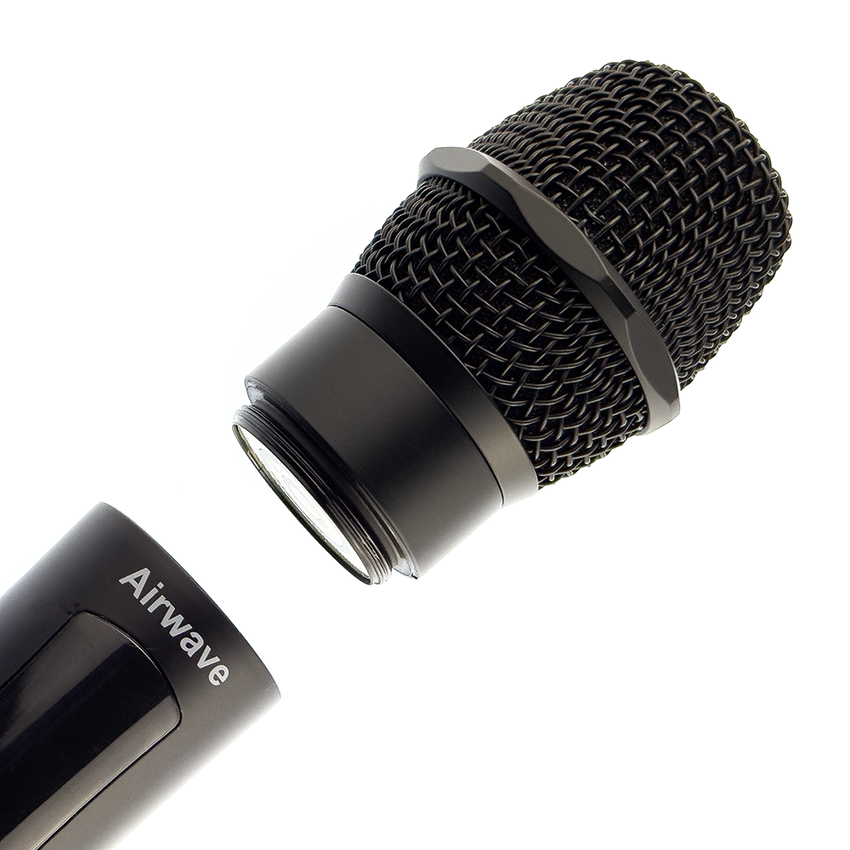

Replaceable Capsule
Infrared Data Synchronization
Capsule Frequency Response: 50Hz-15KHz (±3db)
Capsule Sensitivity: -50dB ± 2dB V/PA@1 KHz
Capsule Directivity: Single Point
Signal to Noise Ratio: >1 00dB (A)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO ± 30% @ 1 KHz
Output Impedance: 4000 ± 30% @ 1 KHz
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Display: LCD
Power Requirements: 2 x 1.5V (AA)
Battery Life: >8H/1300mAH
Dimensions: 9.84" x 1.97"
Weight: 12.7oz
FCC ID: 2AINTU-51
AT-U52 Body Pack Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Frequency Response: 50Hz-15KHz (±3db)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >1 0H/1300mAH
Dimensions: 6.5" x 2.56" x .91"
Weight: 4.59oz
FCC ID: 2AINTU-52
If using up to 2 units (up to 4 channels) the wireless handheld microphone system does not require an antenna combiner under normal conditions. If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended.
Wireless Microphone Systems for Every Need
At Airwave Technologies, we have a variety of 5200 series, 2 channel wireless microphone systems and product packs available containing convenient features and pro worthy audio, all at an affordable price point. If you are interested in a wireless mic system, Airwave Technologies is here to assist you.
