Experience Unmatched Clarity with the 10-Channel Wireless System Package
Step up your audio game with this premium 10-channel wireless system—perfect for facilities or audio engineers who demand the ultimate in sound quality and versatility. With a flawless combination of top-tier components, this system provides unbeatable flexibility and performance for any venue or event.
- 5 high-performance handheld microphones
- 5 ultra-comfortable single-ear wireless headsets with body packs
- 5 crystal-clear lavalier microphones
Packaged securely in a durable, 12-space rolling flight case, this system ensures safe, easy transport without compromising on protection. Each of the 10 channels offers 3 customizable options, allowing you to tailor the setup for every unique need. Whether you’re setting up for a live show, conference, or corporate event, this is your go-to solution for effortless wireless mic management.
Perfect for both portable and stationary setups, this 10-channel powerhouse delivers superior performance and flawless audio every time. Available in multiple configurations to suit any requirement.
Ready to elevate your audio experience?

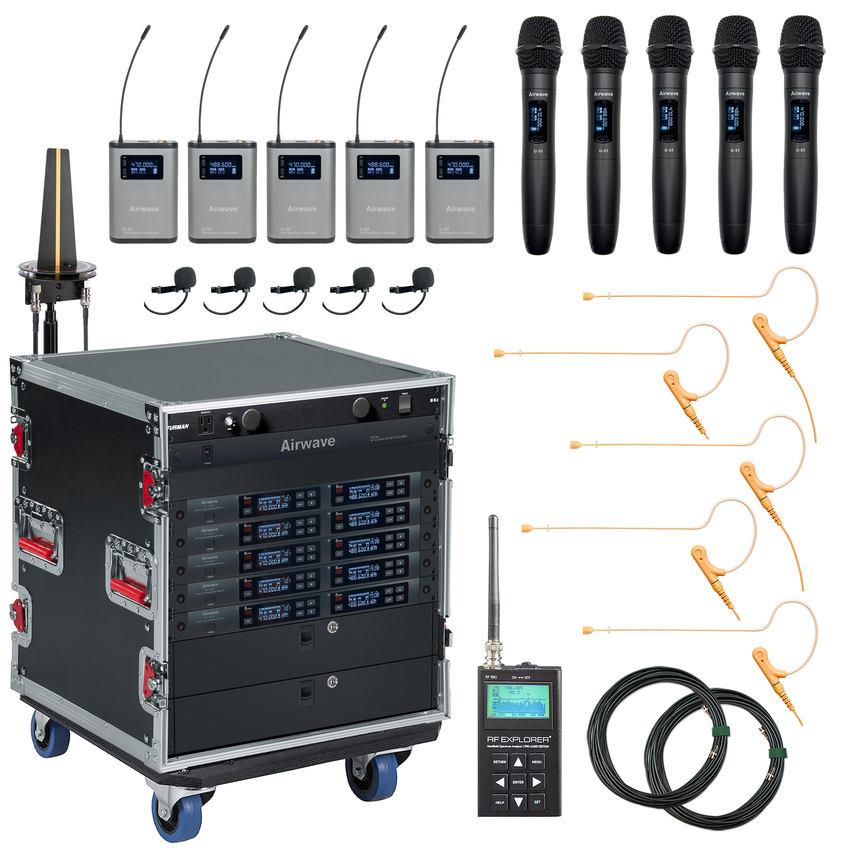

System Includes:
5 Airwave Technologies AT-5200 Dual Channel Wireless Systems
5 HSD-SLIMLINE+SE Single Ear Wireless Microphone Headsets
5 AT-U51 Wireless Handheld Microphones
5 AT-LAV2 Lavalier Microphones
5 AT-U52 Wireless Body Packs
Furman M-8Lx Power Conditioner with Lights
RF Explorer® Frequency Coordination Scanner
ANT-001 Rack Mount Antenna Distro
RF Venue Diversity Omni™ Antenna
2 Band-Pass Filters
2 25ft Antenna Cables
5 Wireless Microphone Clips
12 Space Flight Rack with Casters
2 Two Space Rack Drawers with Diced Foam
1 Blank Rack Panel
514-542 MHz
*Microphone stand for RF Venue DFIN not included
Wireless Microphone System Features
144 Digital switchable UHF Channels
Infrared Data Synchronization
Auto Button for Fast Frequency Sweep
Digital Adjustable Volume, Squelch and Gain Control
Battery Indicators on Handhelds and Base Station
Uses 2 AA batteries for up to 10 Hours of continuous use
System uses one rack space
1/4" and XLR mix outputs
Separate XLR channel output
AT-5200 Wireless Microphone Receiver Features
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Band Width: 19MH / 28MHz
Working Range: 328'
Receiving Sensitivity: < -92dBm for 30dB S/N Ra
Frequency Response: 50Hz-15KHz (±3dB)
Maximum Frequency Offset: >+/-50KHz
Signal to Noise Ratio: >1 00dB (A)
THO: <1 % to 1 KHz
Gain Control Range: 0 to 63dB per 1dB Step
Dynamic Range: >102dB
Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV
Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector
Impedance: XLR: 3KO / 1/4-inch connector: 3KO
Antenna Connectors: 2 BNC 500
Display: LCD
Power Requirements: 12V/0.5A DC
Operating Temperature Range: 28°F - 122°F
Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)
Weight: 3.86 lb.
FCC ID: 2AINTU-51
AT-U51 Handheld Microphone Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz

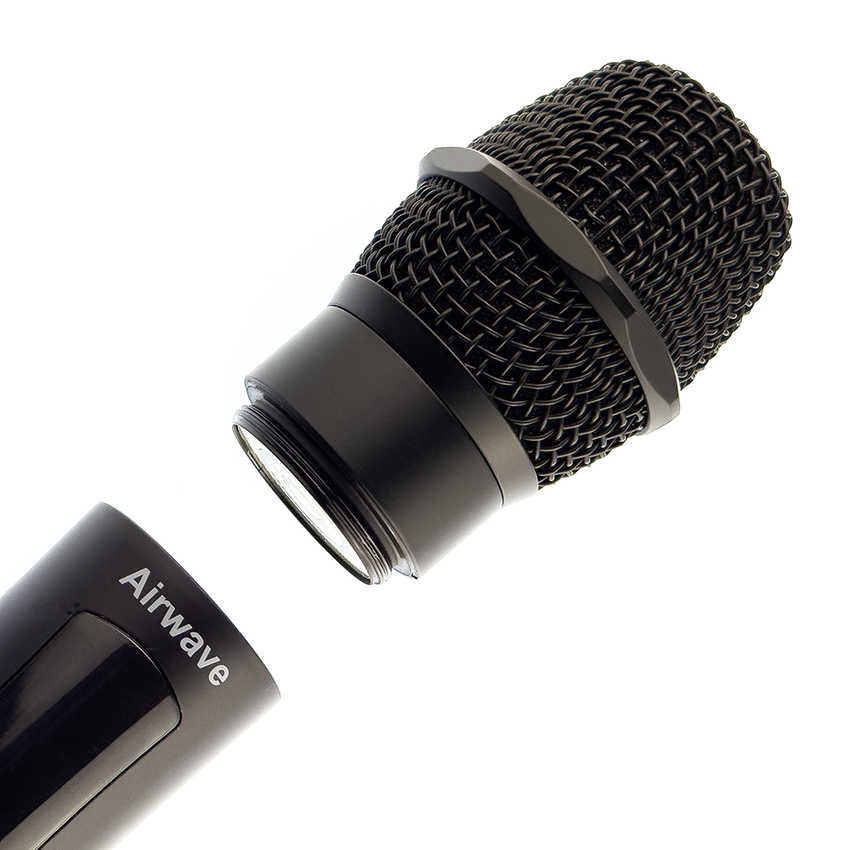

Replaceable Capsule
Infrared Data Synchronization
Capsule Frequency Response: 50Hz-15KHz (±3db)
Capsule Sensitivity: -50dB ± 2dB V/PA@1 KHz
Capsule Directivity: Single Point
Signal to Noise Ratio: >1 00dB (A)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO ± 30% @ 1 KHz
Output Impedance: 4000 ± 30% @ 1 KHz
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Display: LCD
Power Requirements: 2 x 1.5V (AA)
Battery Life: >8H/1300mAH
Dimensions: 9.84" x 1.97"
Weight: 12.7oz
FCC ID: 2AINTU-51
AT-U52 Body Pack Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Frequency Response: 50Hz-15KHz (±3db)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >1 0H/1300mAH
Dimensions: 6.5" x 2.56" x .91"
Weight: 4.59oz
FCC ID: 2AINTU-52
If using up to 2 units (up to 4 channels) the wireless handheld microphone system does not require an antenna combiner under normal conditions. If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended.
Wireless Microphone Systems for Every Need
At Airwave Technologies, we have a variety of 5200 series, 2 channel wireless microphone systems and product packs available containing convenient features and pro worthy audio, all at an affordable price point. If you are interested in a wireless mic system, Airwave Technologies is here to assist you.
