Deliver Premium Pro Sound with the Ultimate 6-Channel Wireless Microphone System
Take your wireless microphone rental services to the next level with this high-performance 6-channel system—designed to provide exceptional, professional sound for your customers. The ultimate solution for rental companies looking to offer superior audio for any event, this system is housed in a rugged, 10-space rolling flight case, ensuring that each component stays securely protected and easy to transport from gig to gig.
This system is engineered for maximum versatility, with 3 premium options for each of the 6 channels: handheld microphones, professional lavaliers, premium dual-ear headsets, and body packs. Whether you’re delivering crystal-clear audio for live events, conferences, or performances, this setup offers the flexibility and reliability your clients need for flawless wireless audio.
Designed for powerhouse rental services, the 10-space rolling flight case makes setup and transport effortless, while ensuring all equipment stays organized and ready for action. With multiple configurations available, this system is tailored to meet the specific needs of any event or venue.
Elevate your rental offerings with this next-level 6-channel wireless microphone system, and provide your clients with a seamless, high-quality audio experience that will exceed expectations.

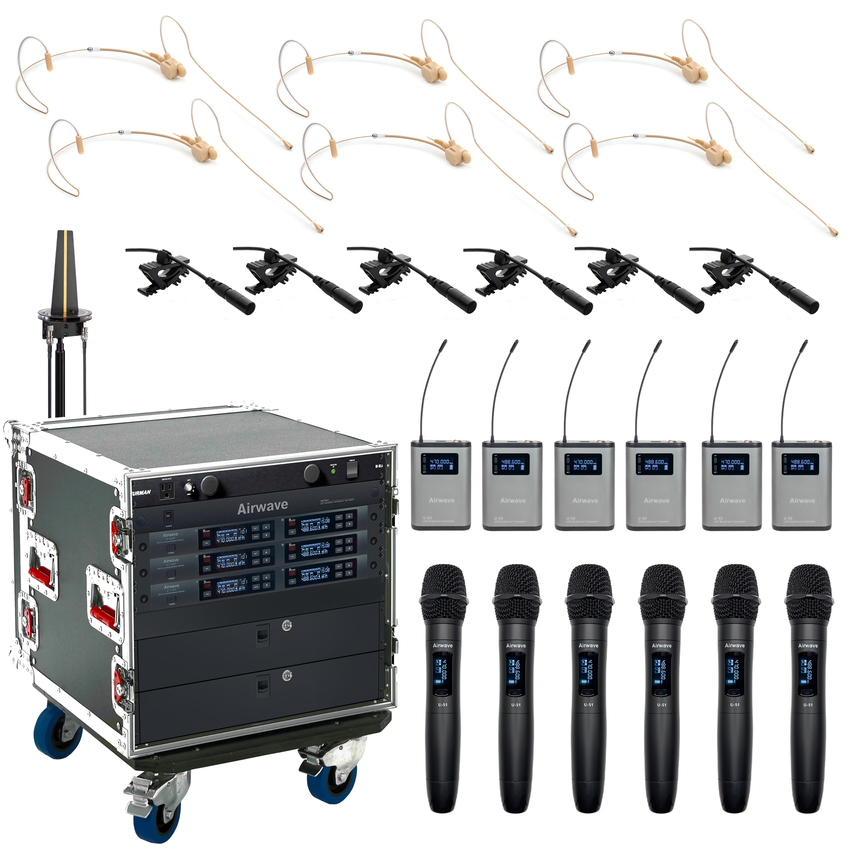

System Includes:
3 Airwave Technologies AT-5200 Dual Channel Wireless Systems

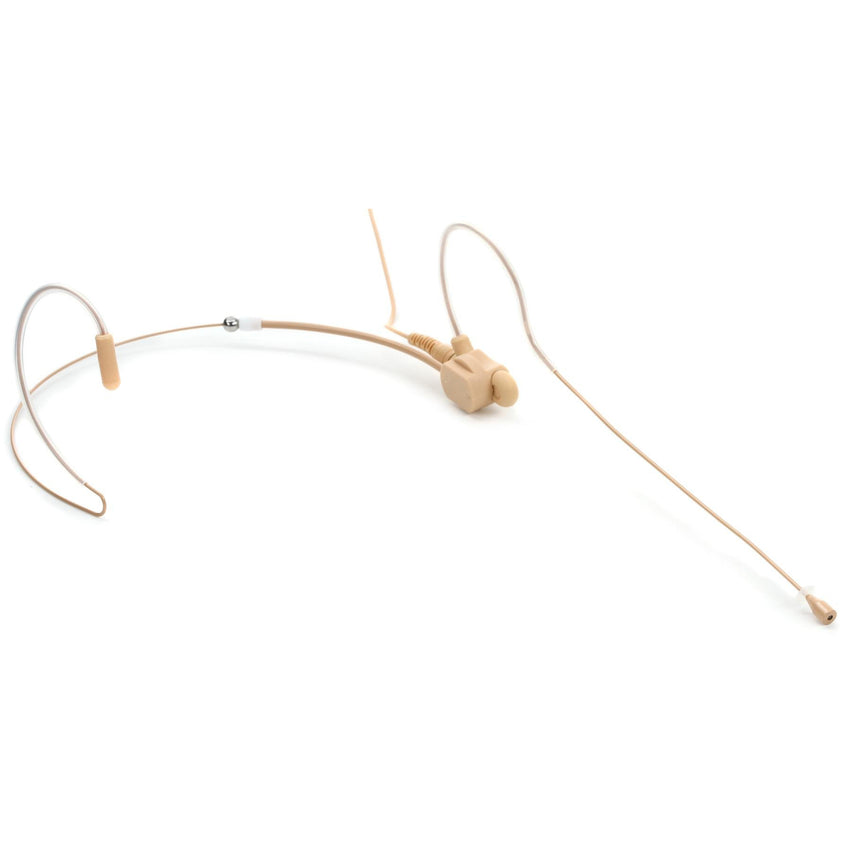

6 HSD-TITANIUM Slim Clip System Dual Ear Wireless Microphone Headsets

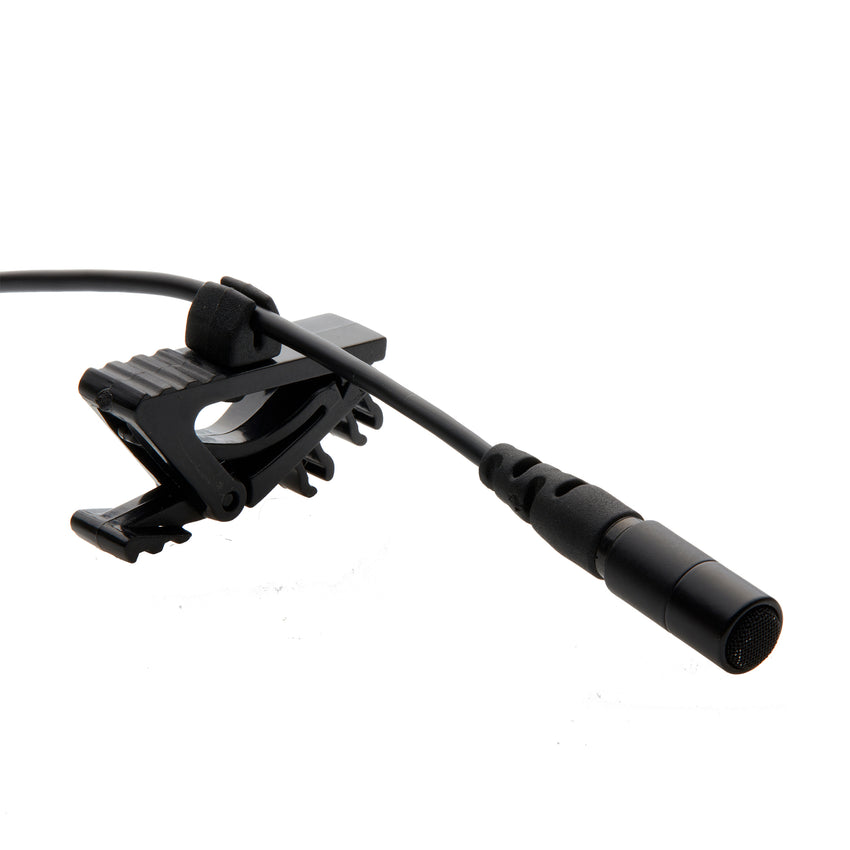

6 LAV-TITANIUM Lavaliere Microphones with Accessory Package
6 AT-U51 Handheld Microphones
6 AT-U52 Wireless Body Packs

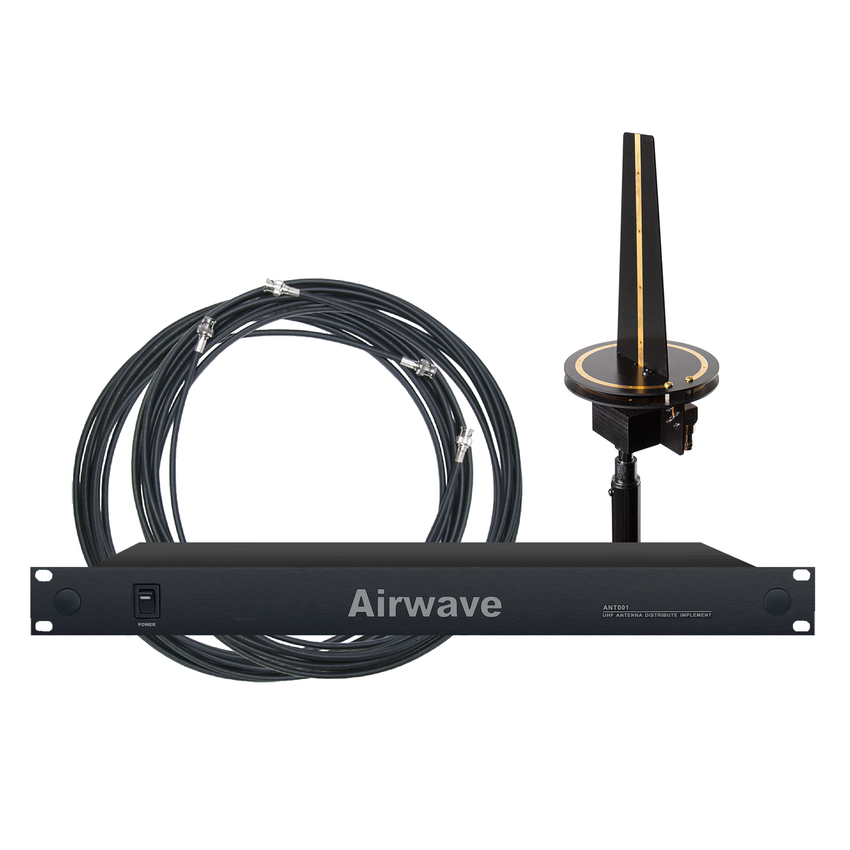

ANT-001 Rack Mount Antenna Distro
RF Venue Diversity Omni™ Antenna
2 Band-Pass Filters
2 25ft Antenna Cables
6 Wireless Microphone Clips
10 Space Flight Rack with Casters
2 Two Space Rack Drawer with Diced Foam
514-542 MHz
*Microphone stand for RF Venue DFIN not included
Wireless Microphone System Features
144 Digital switchable UHF Channels
Infrared Data Synchronization
Auto Button for Fast Frequency Sweep
Digital Adjustable Volume, Squelch and Gain Control
Battery Indicators on Handhelds and Base Station
Uses 2 AA batteries for up to 10 Hours of continuous use
System uses one rack space
1/4" and XLR mix outputs
Separate XLR channel output
AT-5200 Wireless Microphone Receiver Features
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Band Width: 19MH / 28MHz
Working Range: 328'
Receiving Sensitivity: < -92dBm for 30dB S/N Ra
Frequency Response: 50Hz-15KHz (±3dB)
Maximum Frequency Offset: >+/-50KHz
Signal to Noise Ratio: >1 00dB (A)
THO: <1 % to 1 KHz
Gain Control Range: 0 to 63dB per 1dB Step
Dynamic Range: >102dB
Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV
Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector
Impedance: XLR: 3KO / 1/4-inch connector: 3KO
Antenna Connectors: 2 BNC 500
Display: LCD
Power Requirements: 12V/0.5A DC
Operating Temperature Range: 28°F - 122°F
Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)
Weight: 3.86 lb.
FCC ID: 2AINTU-51
AT-U51 Handheld Microphone Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz
Replaceable Capsule
Infrared Data Synchronization
Capsule Frequency Response: 50Hz-15KHz (±3db)
Capsule Sensitivity: -50dB ± 2dB V/PA@1 KHz
Capsule Directivity: Single Point
Signal to Noise Ratio: >1 00dB (A)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO ± 30% @ 1 KHz
Output Impedance: 4000 ± 30% @ 1 KHz
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Display: LCD
Power Requirements: 2 x 1.5V (AA)
Battery Life: >8H/1300mAH
Dimensions: 9.84" x 1.97"
Weight: 12.7oz
FCC ID: 2AINTU-51
AT-U52 Body Pack Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Frequency Response: 50Hz-15KHz (±3db)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >1 0H/1300mAH
Dimensions: 6.5" x 2.56" x .91"
Weight: 4.59oz
FCC ID: 2AINTU-52
If using up to 2 units (up to 4 channels) the wireless handheld microphone system does not require an antenna combiner under normal conditions. If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended.
Wireless Microphone Systems for Every Need
At Airwave Technologies, we have a variety of 5200 series, 2 channel wireless microphone systems and product packs available containing convenient features and pro worthy audio, all at an affordable price point. If you are interested in a wireless mic system, Airwave Technologies is here to assist you.
