Experience Effortless Performance with the Ultimate 2-Channel Wireless Microphone System
Designed for maximum flexibility and ultimate convenience, this compact 2-channel wireless microphone system is the perfect solution for rental companies seeking a portable, high-performance system that seamlessly fits into an existing rack. Whether you’re providing a quick setup or need a reliable solution for multiple transmitters, this system is built to deliver flawless audio with ease.
With 3 customizable options on each channel, this system ensures your wireless microphone rental services are incredibly versatile, offering endless possibilities for any event. Whether you need to rent out handheld microphones or use it for a variety of wireless applications, this system provides the perfect balance of performance and portability.
Available in multiple configurations, this 2-channel system is the ultimate choice for rental companies that demand powerful, yet compact solutions to meet their clients’ diverse needs.
Elevate your rental services with this sleek, reliable, and game-changing wireless microphone system today!

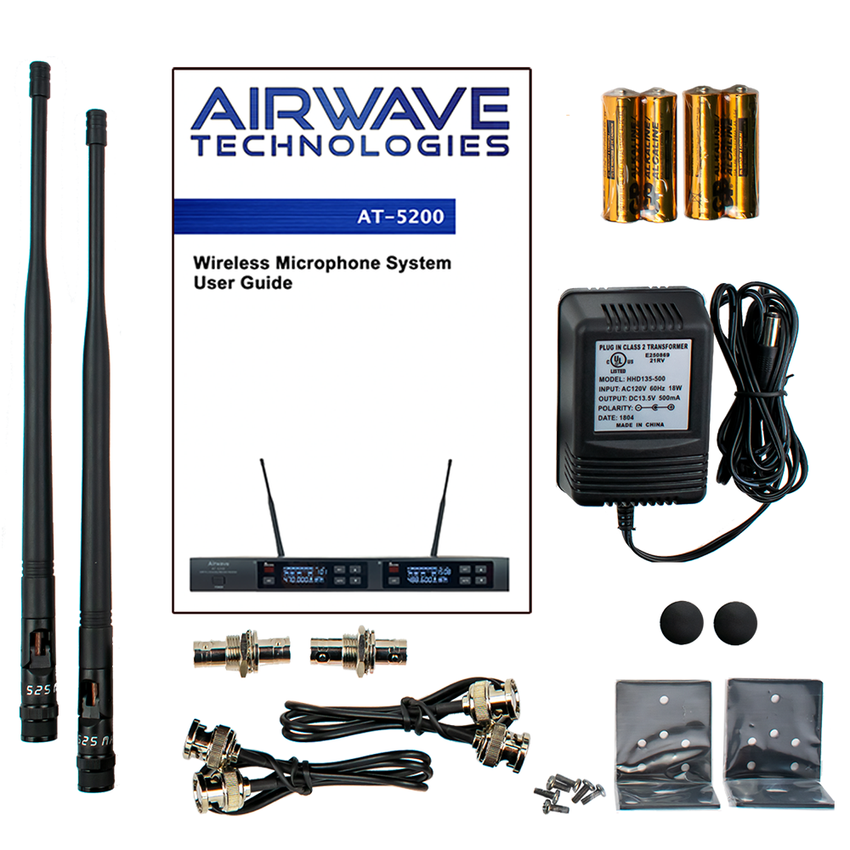

System Includes:
1 Airwave Technologies AT-5200 Dual Channel Wireless Systems

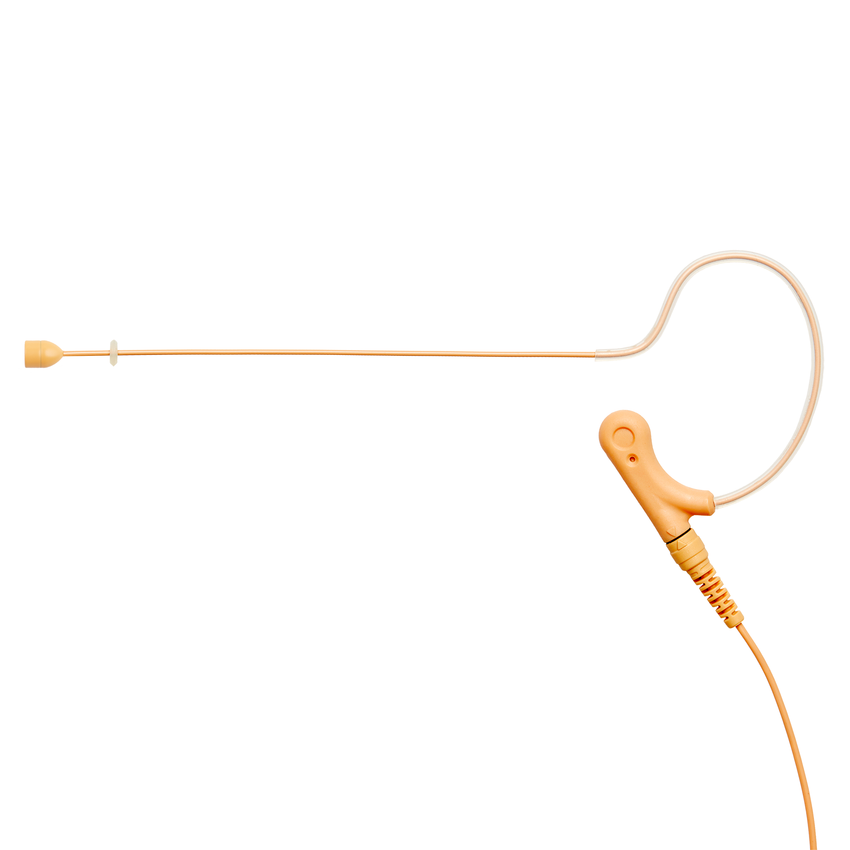

2 HSD-SLIMLINE+SE Single Ear Wireless Microphone Headsets
2 AT-U52 Wireless Body Packs
2 AT-U51 Wireless Handheld Microphones

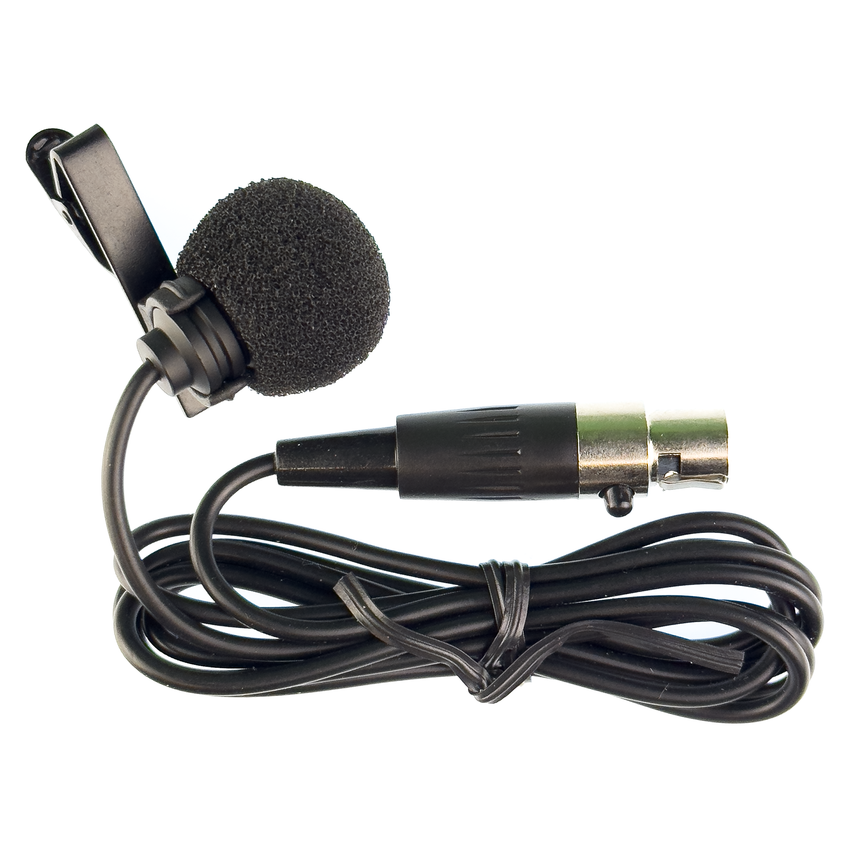

2 AT-LAV2 Lavalier Microphones
514 - 542 MHz
FCC Tested and Approved: FCC ID 2AINTU-51
Wireless Microphone System Features
144 Digital switchable UHF Channels
Infrared Data Synchronization
Auto Button for Fast Frequency Sweep
Digital Adjustable Volume, Squelch and Gain Control
Battery Indicators on Handhelds and Base Station
Uses 2 AA batteries for up to 10 Hours of continuous use
System uses one rack space
1/4" and XLR mix outputs
separate XLR channel output

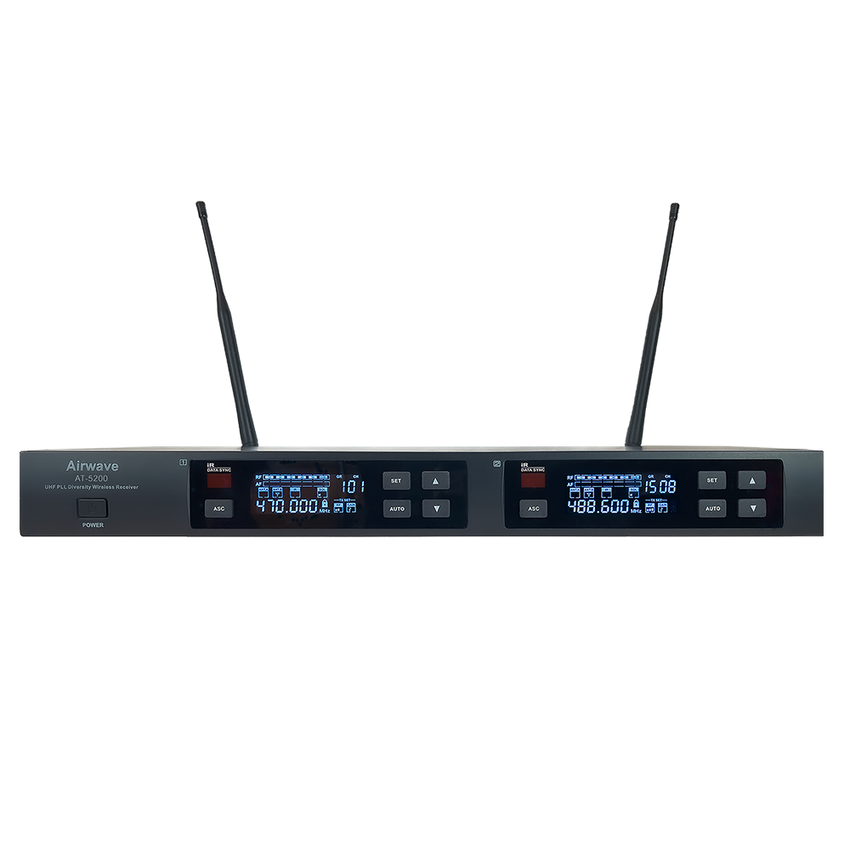

AT-5200 Wireless Microphone Receiver Features
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Band Width: 19MH / 28MHz
Working Range: 328'
Receiving Sensitivity: < -92dBm for 30dB S/N Ra
Frequency Response: 50Hz-15KHz (±3dB)
Maximum Frequency Offset: >+/-50KHz
Signal to Noise Ratio: >1 00dB (A)
THO: <1 % to 1 KHz
Gain Control Range: 0 to 63dB per 1dB Step
Dynamic Range: >102dB
Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV

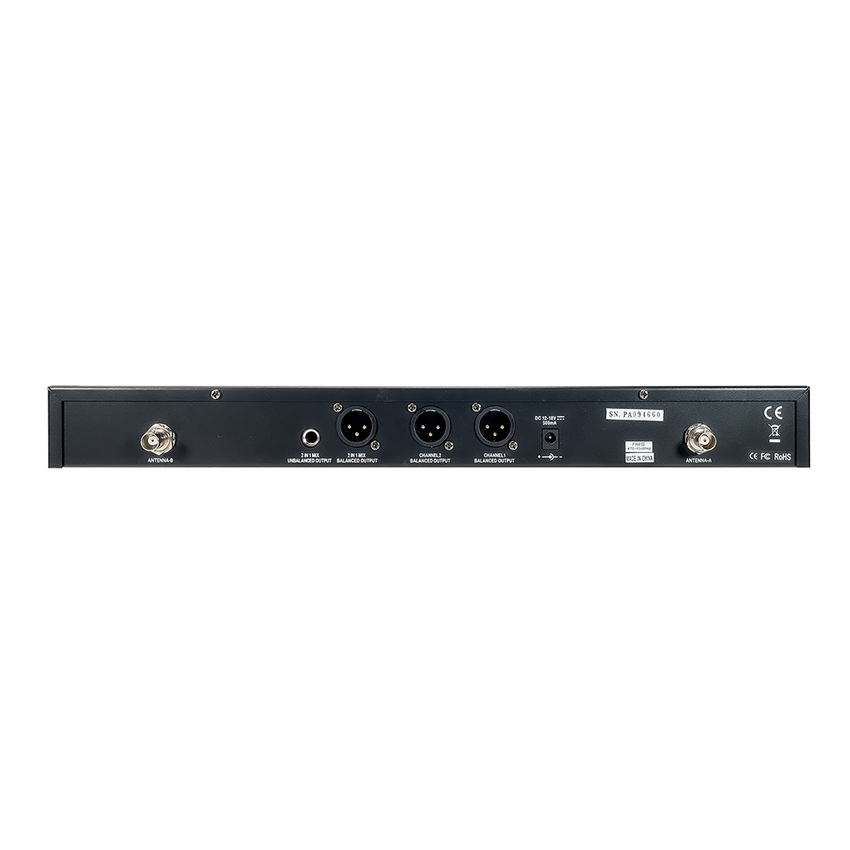

Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector
Impedance: XLR: 3KO / 1/4-inch connector: 3KO
Antenna Connectors: 2 BNC 500
Display: LCD
Power Requirements: 12V/0.5A DC
Operating Temperature Range: 28°F - 122°F
Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)
Weight: 3.86 lb.
FCC ID: 2AINTU-51

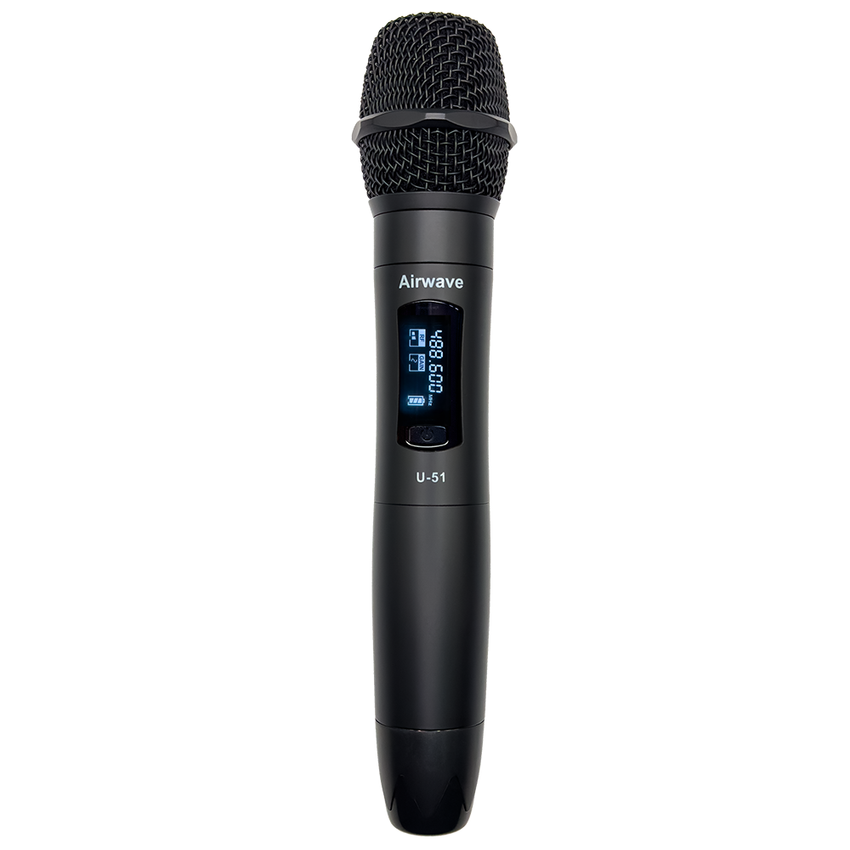

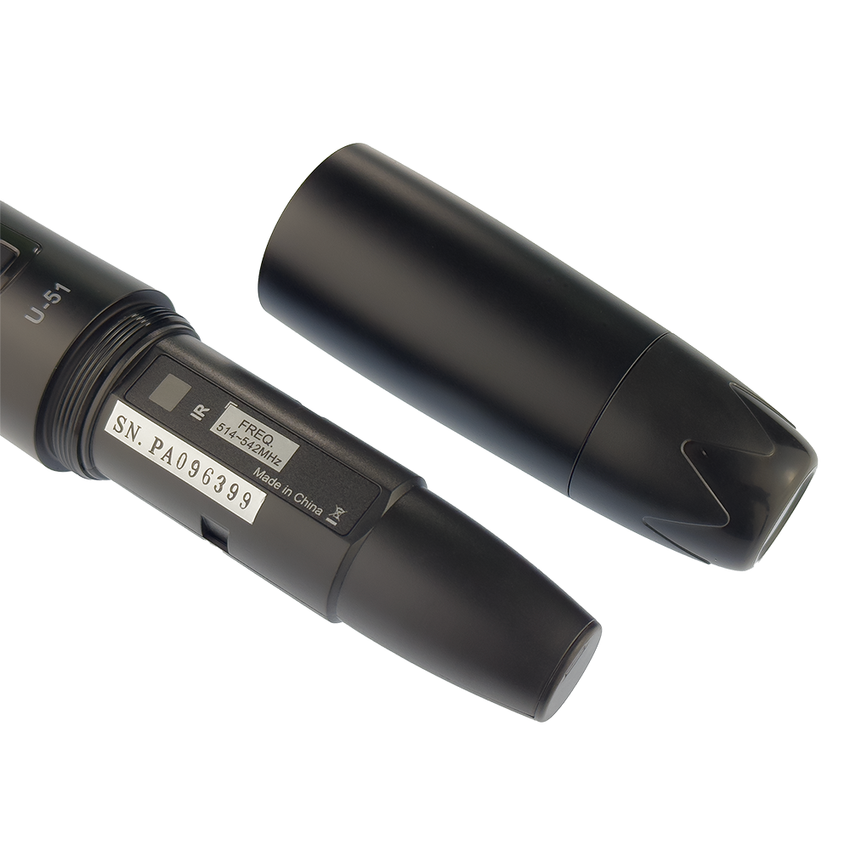

AT-U51 Handheld Microphone Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz

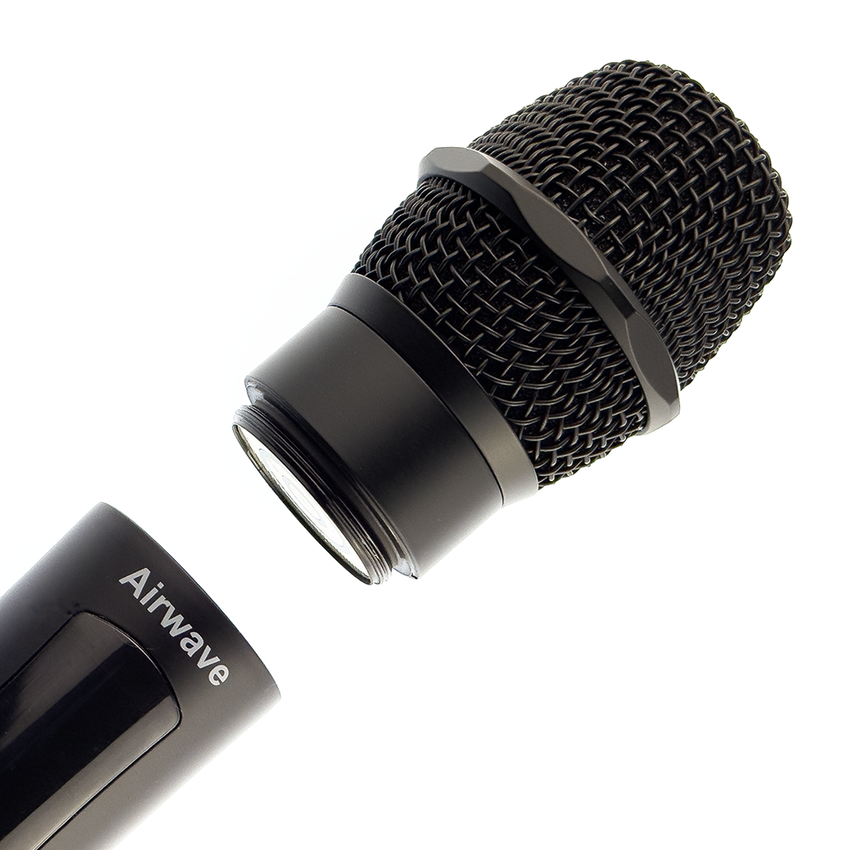

Replaceable Capsule
Infrared Data Synchronization
Capsule Frequency Response: 50Hz-15KHz (±3db)
Capsule Sensitivity: -50dB ± 2dB V/PA@1 KHz
Capsule Directivity: Single Point
Signal to Noise Ratio: >1 00dB (A)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO ± 30% @ 1 KHz
Output Impedance: 4000 ± 30% @ 1 KHz
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Display: LCD
Power Requirements: 2 x 1.5V (AA)
Battery Life: >8H/1300mAH
Dimensions: 9.84" x 1.97"
Weight: 12.7oz
FCC ID: 2AINTU-51

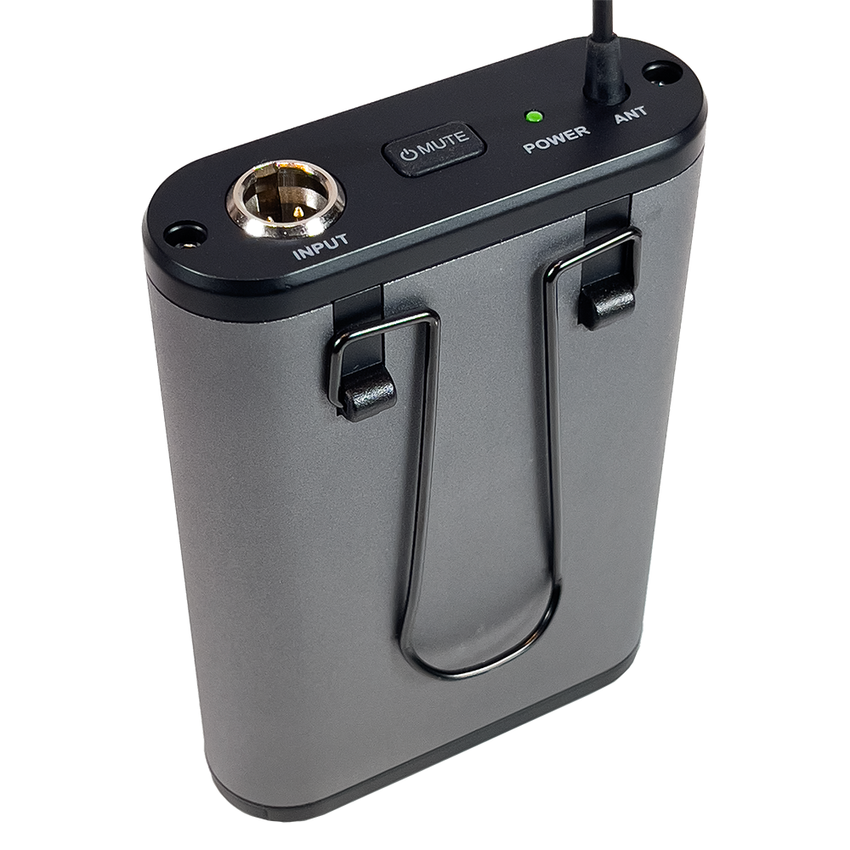

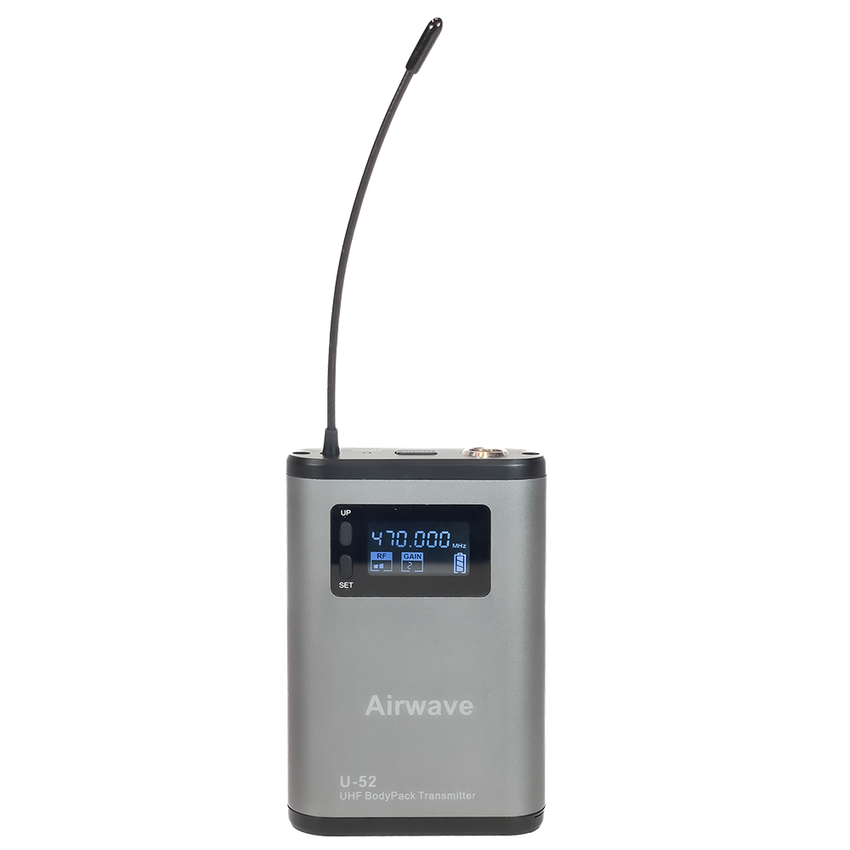

AT-U52 Body Pack Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Frequency Response: 50Hz-15KHz (±3db)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >1 0H/1300mAH
Dimensions: 6.5" x 2.56" x .91"
Weight: 4.59oz
FCC ID: 2AINTU-52
If using up to 2 units (up to 4 channels) the wireless handheld microphone system does not require an antenna combiner under normal conditions. If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended.
Wireless Microphone Systems for Every Need
At Airwave Technologies, we have a variety of 5200 series, 2 channel wireless microphone systems and product packs available containing convenient features and pro worthy audio, all at an affordable price point. If you are interested in a wireless mic system, Airwave Technologies is here to assist you.
