FREE SHIPPING!
Unleash Premium Sound with the 5200 Series System—Your Ultimate Audio Solution.
Elevate your sound experience with the next-level 5200 Series system, engineered for those who demand nothing less than perfection. This powerhouse setup includes 2 elite Titanium Series lavaliere microphones and 2 advanced body packs, delivering flawless audio clarity in any setting. Whether you're on the go or stationary, enjoy seamless comfort, unstoppable flexibility, and superior performance.
Step into a world where immaculate sound and effortless operation meet—because you deserve the best.

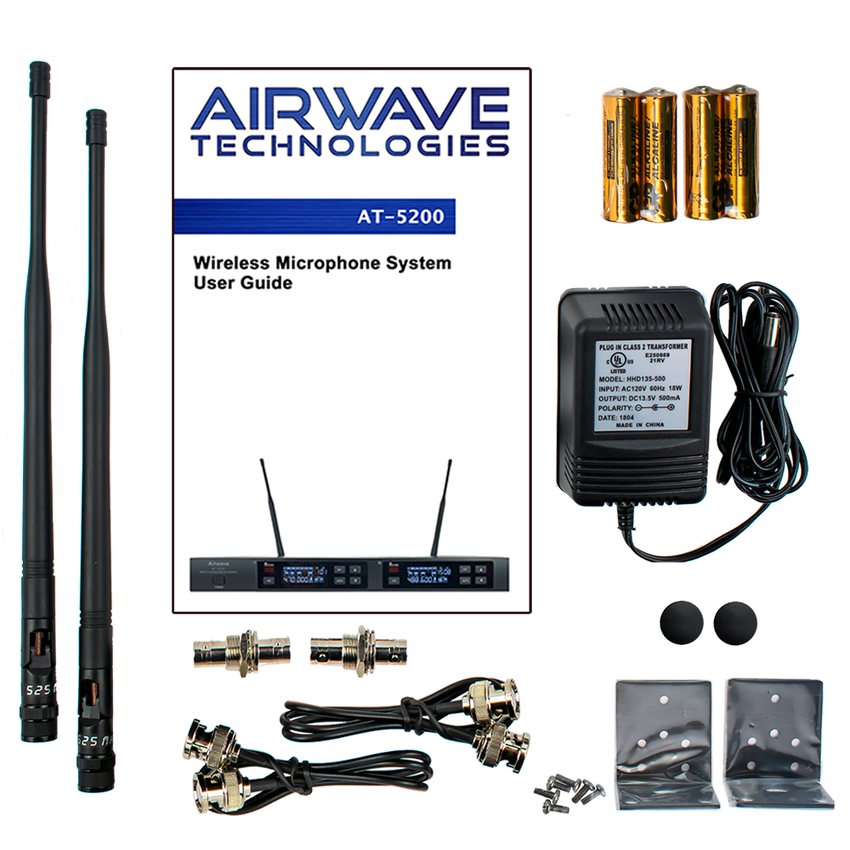

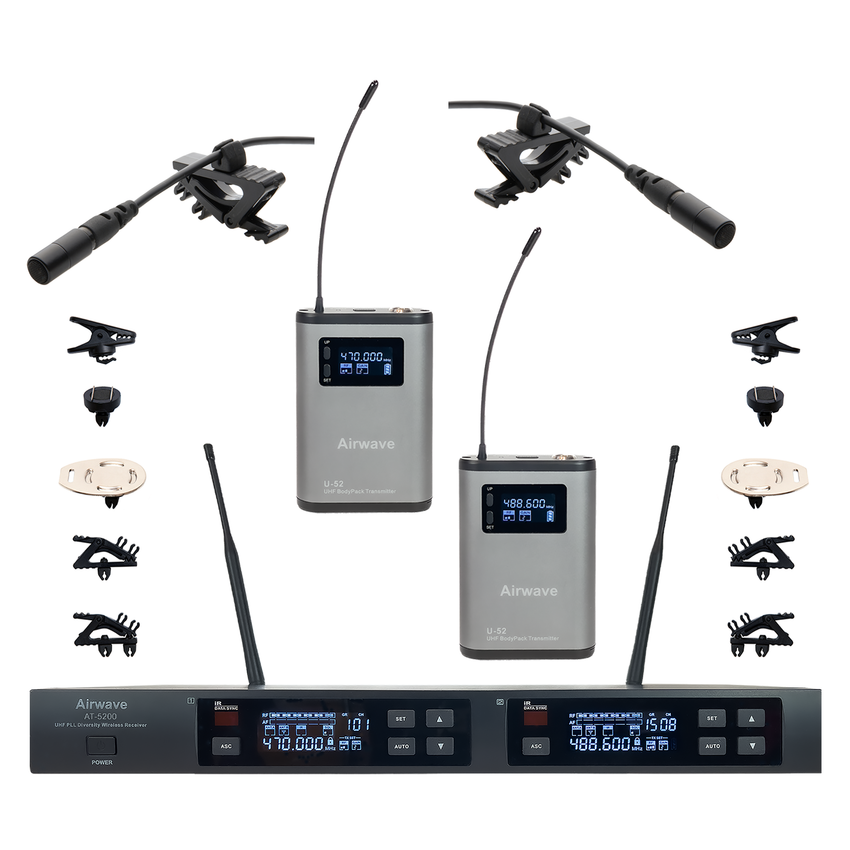

System Includes:
1 Airwave Technologies AT-5200 Dual Channel Wireless Systems

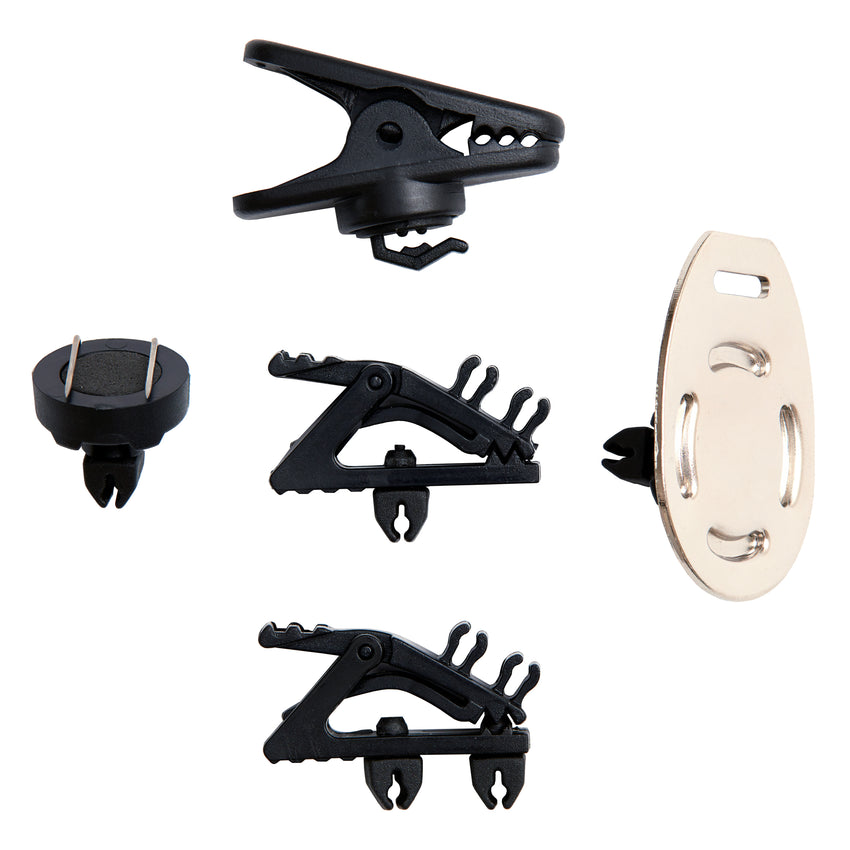

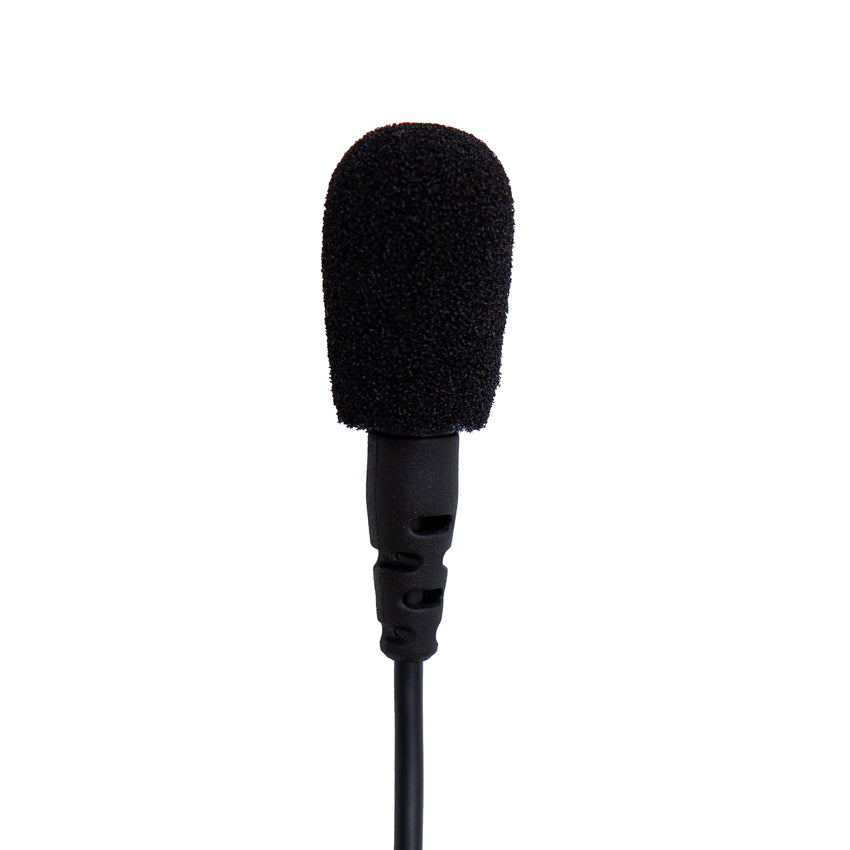

2 LAV-TITANIUM T3 BLACK Professional Omni Lavaliere Microphones
2 AT-U52 Wireless Body Packs
514 - 542 MHz
Wireless Microphone System Features
144 Digital switchable UHF Channels
Infrared Data Synchronization
Auto Button for Fast Frequency Sweep
Digital Adjustable Volume, Squelch and Gain Control
Battery Indicators on Handhelds and Base Station
Uses 2 AA batteries for up to 10 Hours of continuous use
System uses one rack space
1/4" and XLR mix outputs
separate XLR channel output

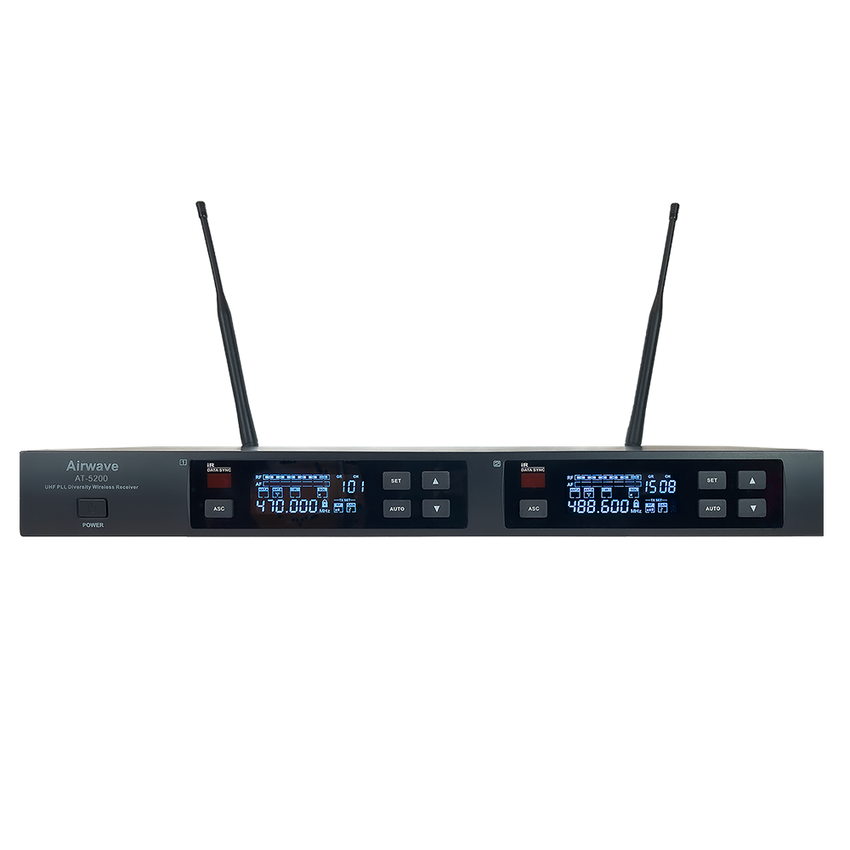

AT-5200 Wireless Microphone Receiver Features
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Band Width: 19MH / 28MHz
Working Range: 328'
Receiving Sensitivity: < -92dBm for 30dB S/N Ra
Frequency Response: 50Hz-15KHz (±3dB)
Maximum Frequency Offset: >+/-50KHz
Signal to Noise Ratio: >1 00dB (A)
THO: <1 % to 1 KHz
Gain Control Range: 0 to 63dB per 1dB Step
Dynamic Range: >102dB
Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV

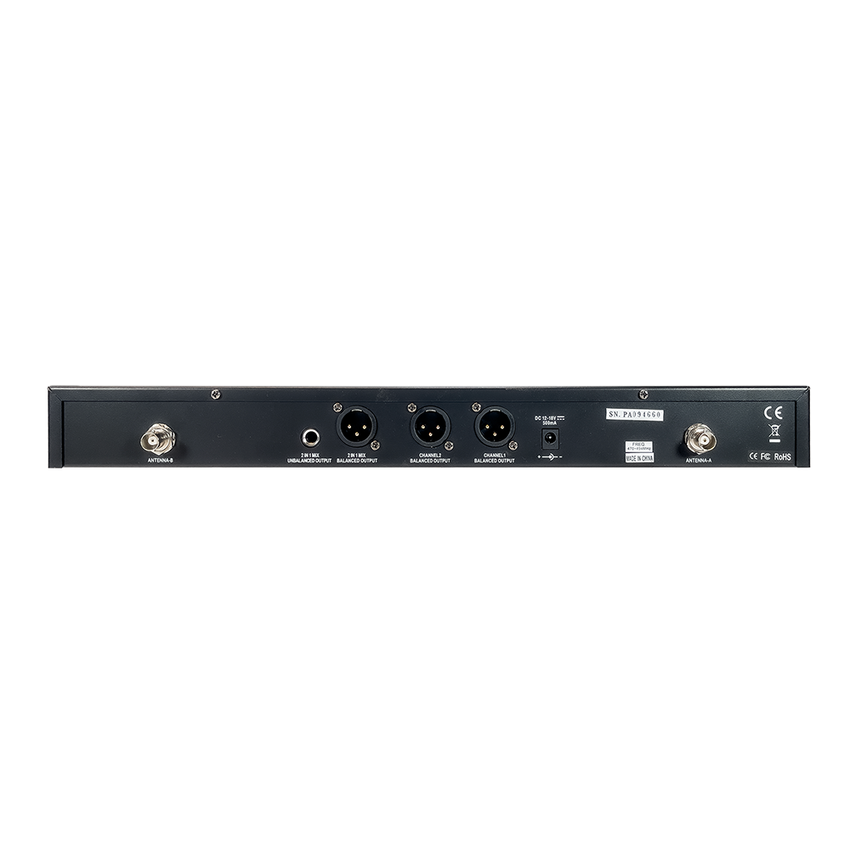

Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector
Impedance: XLR: 3KO / 1/4-inch connector: 3KO
Antenna Connectors: 2 BNC 500
Display: LCD
Power Requirements: 12V/0.5A DC
Operating Temperature Range: 28°F - 122°F
Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)
Weight: 3.86 lb.
FCC ID: 2AINTU-51

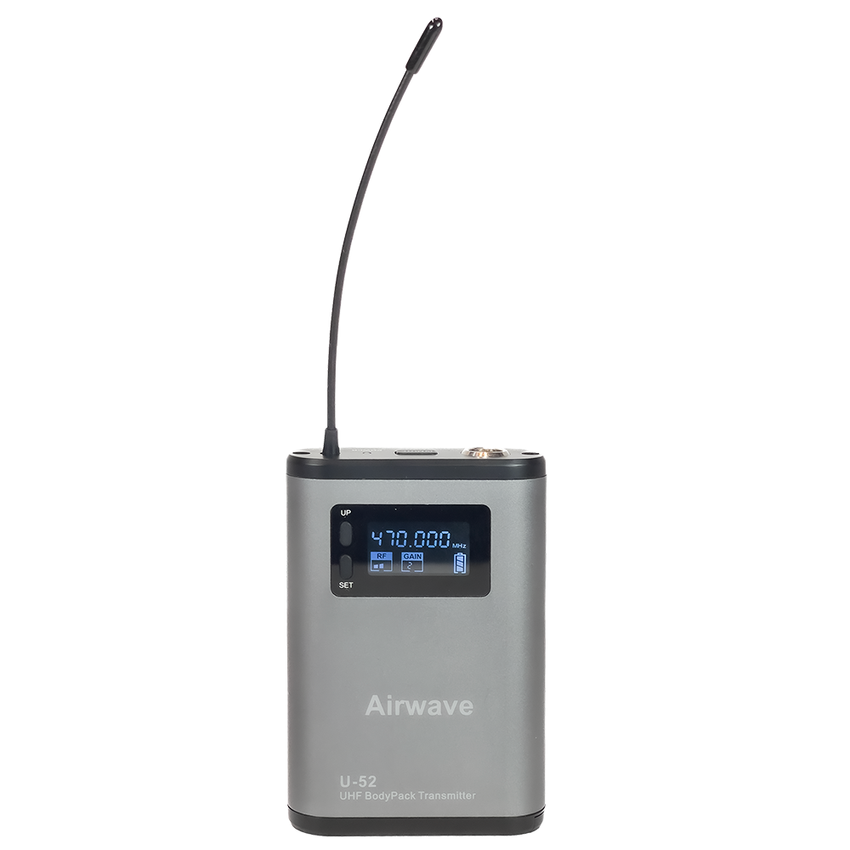

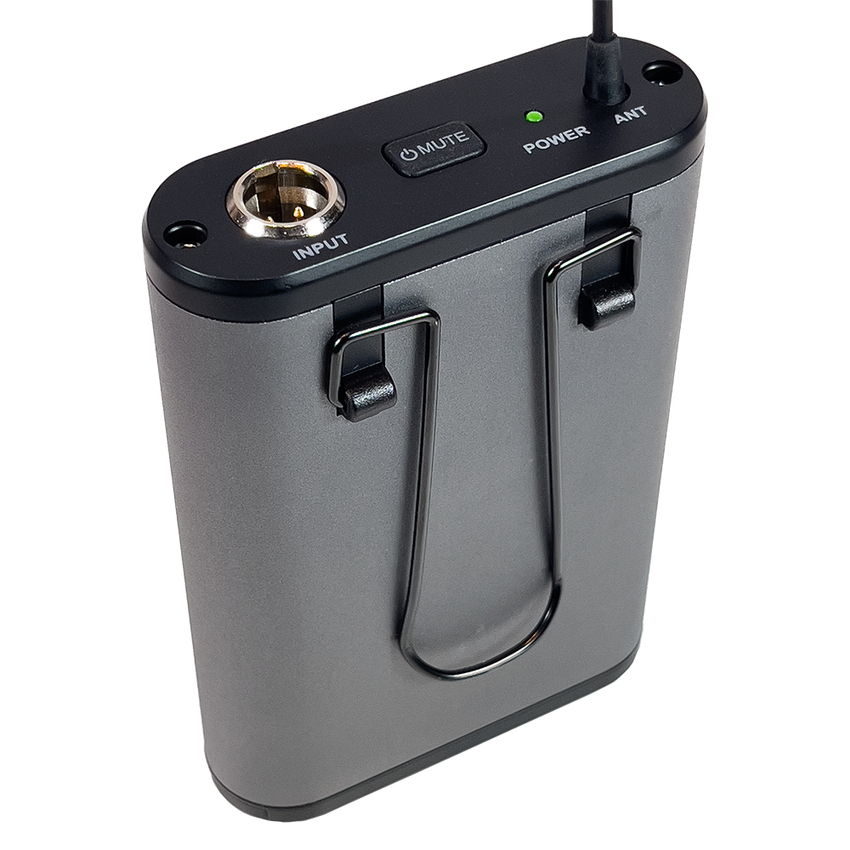

AT-U52 Body Pack Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Frequency Response: 50Hz-15KHz (±3db)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >1 0H/1300mAH
Dimensions: 6.5" x 2.56" x .91"
Weight: 4.59oz
FCC ID: 2AINTU-52
If using up to 2 units (up to 4 channels) the wireless handheld microphone system does not require an antenna combiner under normal conditions. If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended.
Wireless Microphone Systems for Every Need
At Airwave Technologies, we have a variety of 5200 series, 2 channel wireless microphone systems and product packs available containing convenient features and pro worthy audio, all at an affordable price point. If you are interested in a wireless mic system, Airwave Technologies is here to assist you.
