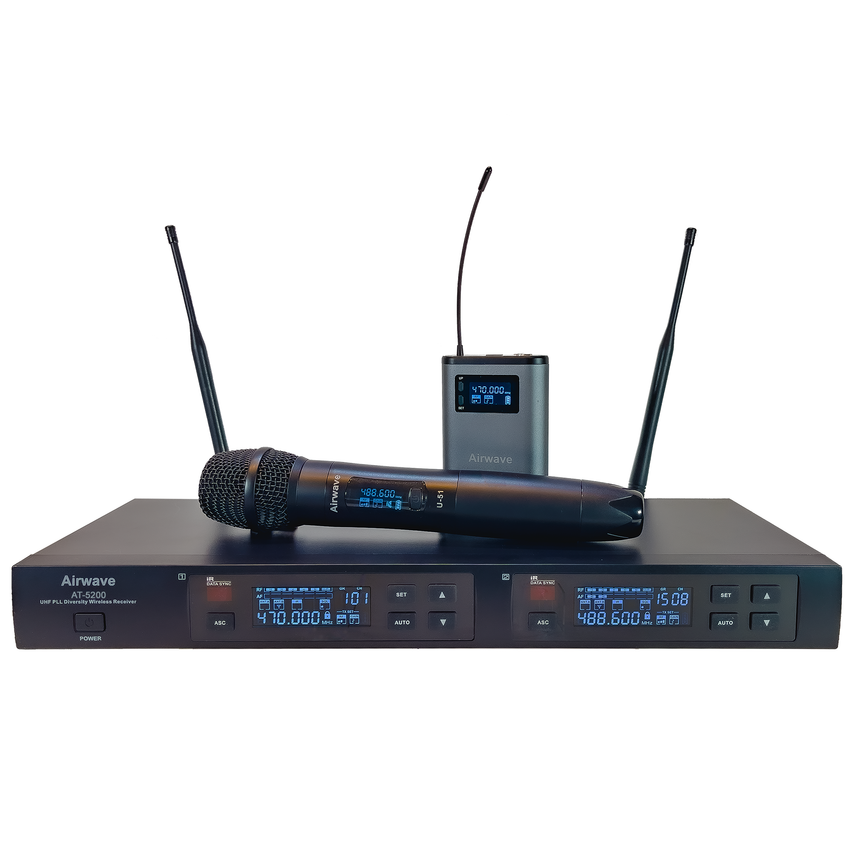

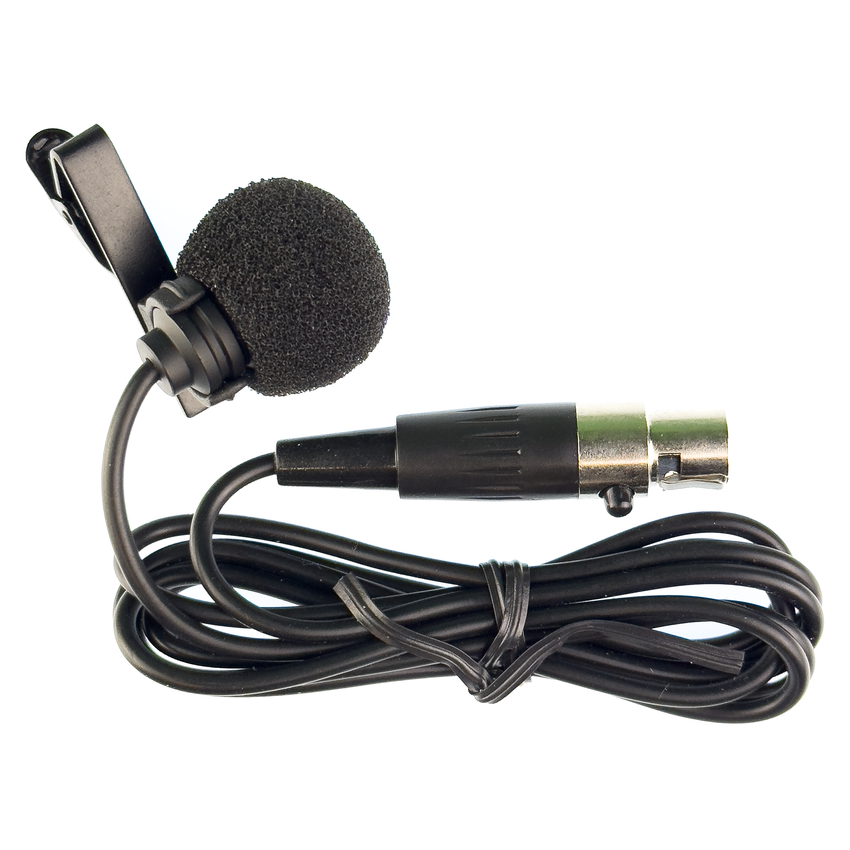

Unlock the adaptability and power of wireless freedom with our all-new 5th generation of 2 Channel Wireless Microphone System. The Airwave Technologies AT-5250 features a 1U rack mount receiver, 1 AT-U51 handheld wireless microphone, 1 AT-U52 wireless bodypack transmitter, and 1 LAV-2 lavaliere Microphones. The system’s 144 digital switchable UHF channels and strong signal connection make it capable for settings such as lectures, schools, and House of Worship. Lightweight yet durable, the handheld microphone provides comfort during extended use, while the ergonomic design ensures a natural grip and reduces handling noise. The bodypack and lavalier offer flexibility for hands free use. Optional items that can be used with this system include a wide variety of single ear and dual ear headsets as well as an upgrade to professional lavalieres. Several features are designed to be user friendly on the receiver and transmitter including volume and gain controls, an auto scan button, and up to 10 hours of continuous battery life. Embrace seamless connectivity and superior sound quality. Embrace freedom with reliable connectivity and pristine sound quality. Elevate your audio game today!
Unleashing Seamless Sound: The Next Generation of Wireless from Airwave Technologies
In the dynamic realm of live events, conferences, schools, theaters, and places of worship, harnessing superior audio quality is non-negotiable. Enter the AT-5200 Series of 2 Channel Wireless Microphone Systems, a revolutionary new solution designed to elevate every spoken word and performance to new heights. Whether you're addressing a packed auditorium or leading a worship service, its reliability ensures uninterrupted audio performance, leaving you free to focus on what truly matters—your message.
Imagine a system that effortlessly bridges the gap between clarity and versatility. The AT-5200 Series achieves just that, ensuring every syllable and note is transmitted with pristine fidelity. Adaptability is key in any setting, and the 5th generation of technology in wireless audio from Airwave Technologies delivers with two channels of handheld, headset, or lavalier microphones in a single rack mount space. Seamlessly switch between speakers or performers without missing a beat, thanks to its robust frequency agility of 144 digital channels, and stable transmission with a choice of 2 different frequency ranges. To add more versatility, this series is designed to be used in multiple unit configurations of up to 10 channels with an antenna combiner.
Built with the demands of modern events in mind, Airwave Technologies integrates ease of use with professional-grade features. Whether in the hands of a seasoned presenter or a first-time user, operation remains intuitive, allowing for effortless setup and operation.
Invest in excellence. Invest in clarity. Invest in the Airwave Technologies AT-5200 Series and transform your events, conferences, schools, theaters, and places of worship into showcases of seamless sound. Because when it comes to communication, every word deserves to be heard—and with Airwave Technologies, it will be heard perfectly.
144 Channel UHF Dual Channel 2 Wireless Handheld Microphone System
144 Digital switchable UHF Channels
Choice of Frequency Range: A 470-489 MHz or B 514-542 MHz
Infrared Data Synchronization
Auto Button for Fast Frequency Sweep
Digital Adjustable Volume, Squelch and Gain Control
Battery Indicators on Handhelds and Base Station
Uses 2 AA batteries for up to 10 Hours of continuous use
System uses one rack space
1/4" and XLR mix outputs
separate XLR channel output
AT-5200 WIRELESS MICROPHONE RECEIVER SPECIFICATIONS
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Band Width: 19MH / 28MHz
Working Range: 328'
Receiving Sensitivity: < -92dBm for 30dB S/N Ra
Frequency Response: 50Hz-15KHz (±3dB)
Maximum Frequency Offset: >+/-50KHz
Signal to Noise Ratio: >1 00dB (A)
THO: <1 % to 1 KHz
Gain Control Range: 0 to 63dB per 1dB Step
Dynamic Range: >102dB
Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV
Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector
Impedance: XLR: 3KO / 1/4-inch connector: 3KO
Antenna Connectors: 2 BNC 500
Display: LCD
Power Requirements: 12V/0.5A DC
Operating Temperature Range: 28°F - 122°F
Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)
Weight: 3.86 lb.
FCC ID: 2AINTAT-5200

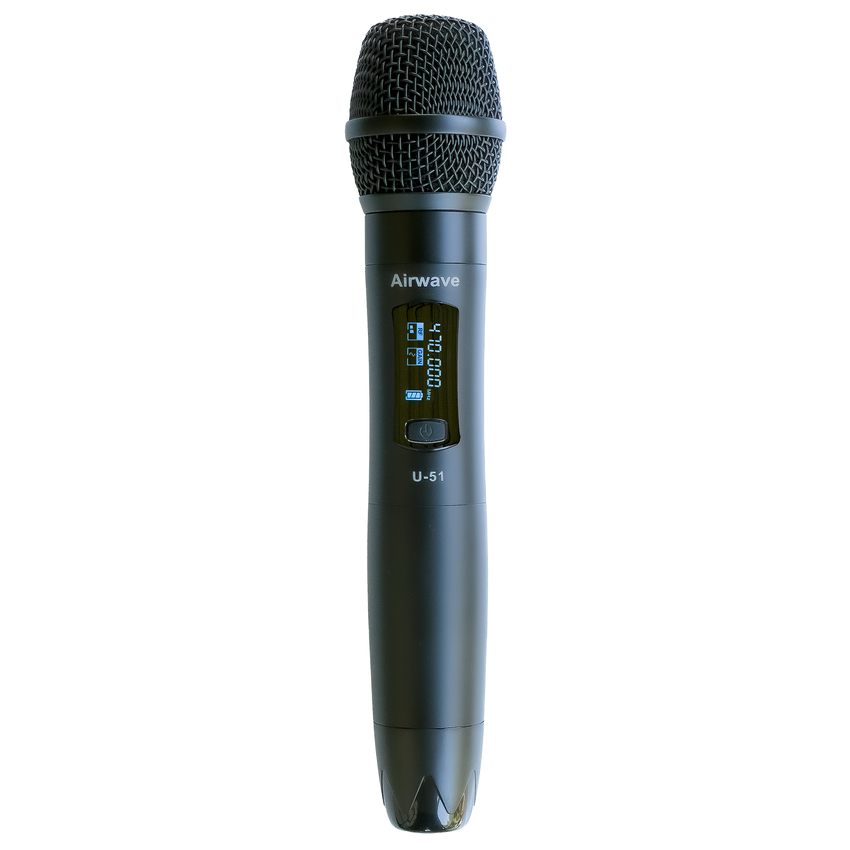

AT-U51 HANDHELD MICROPHONE TRANSMITTER SPECIFICATIONS
Frequency Range: 470-489MHz / 514-542 MHz
Replaceable Capsule
Infrared Data Synchronization
Capsule Frequency Response: 50Hz-15KHz (±3db)
Capsule Sensitivity: -50dB ± 2dB V/PA@1 KHz
Capsule Directivity: Single Point
Signal to Noise Ratio: >1 00dB (A)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO ± 30% @ 1 KHz
Output Impedance: 4000 ± 30% @ 1 KHz
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Display: LCD
Power Requirements: 2 x 1.5V (AA)
Battery Life: >8H/1300mAH
Dimensions: 9.84" x 1.97"
Weight: 12.7oz
FCC ID: 2AINTU-51

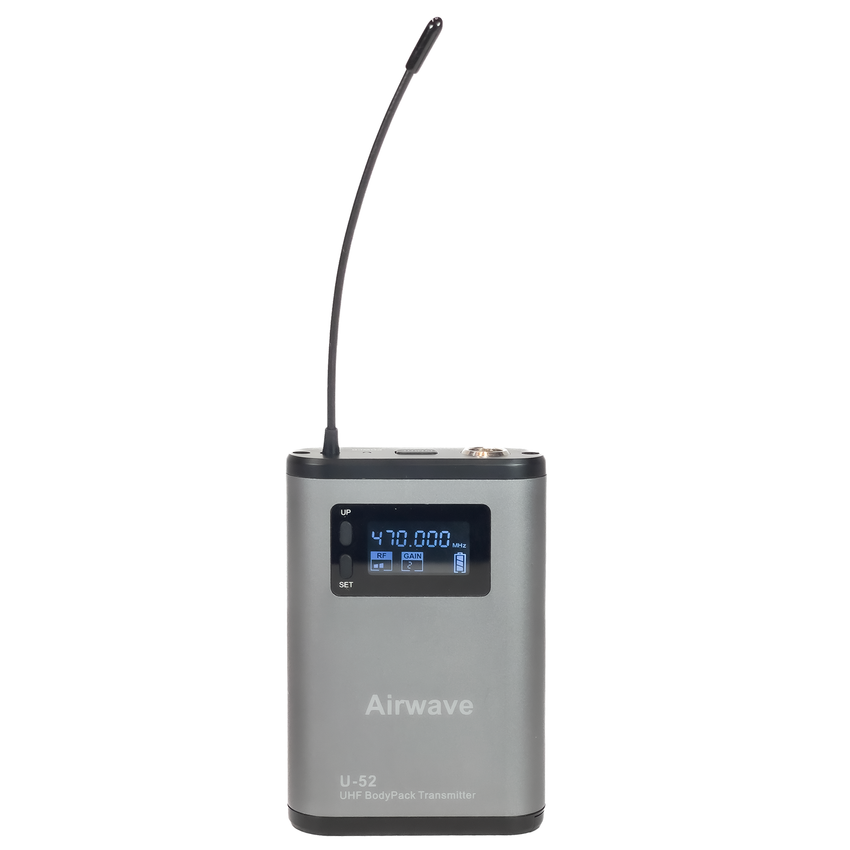

AT-U52 BODYPACK TRANSMITTER SPECIFICATIONS
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Frequency Response: 50Hz-15KHz (±3db)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32. 768KHz
Display: LCD

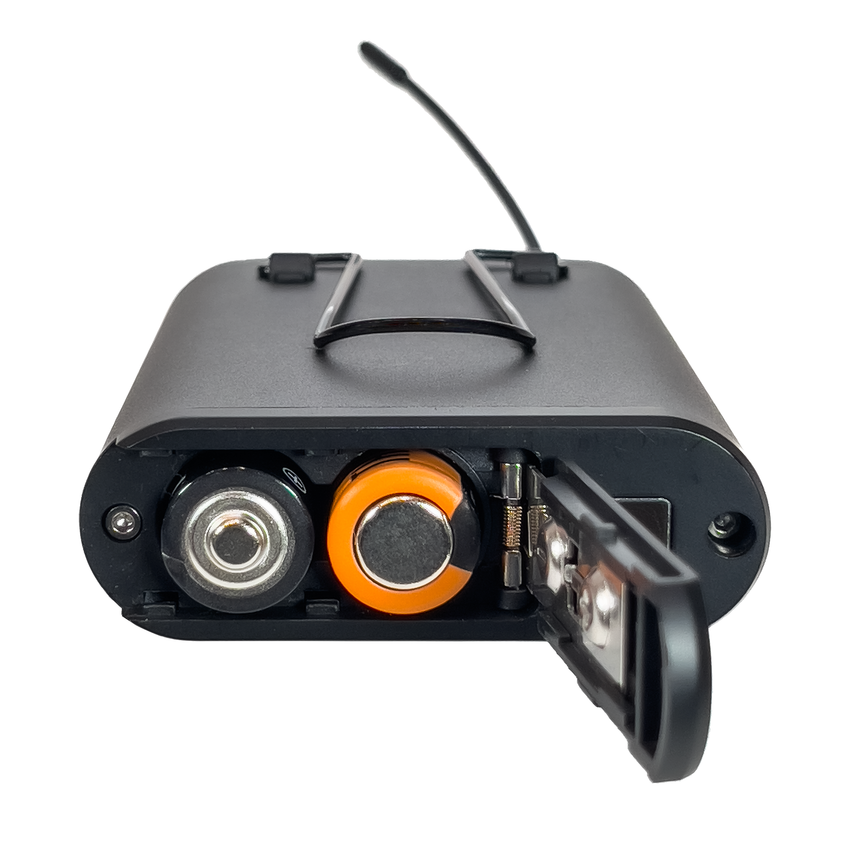

Power Requirements: 1.5V x 2(AA)
Battery Life: >1 0H/1300mAH
Dimensions: 6.5" x 2.56" x .91"
Weight: 4.59oz
FCC ID: 2AINTU-52
If using up to 2 units (up to 4 channels) the wireless handheld microphone system does not require an antenna combiner under normal conditions. If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended.
Wireless Microphone Systems for Every Need
At Airwave Technologies, we have a variety of 5200 series, 2 channel wireless microphone systems and product packs available containing convenient features and pro worthy audio, all at an affordable price point. If you are interested in a wireless mic system, Airwave Technologies is here to assist you.
