Powerful 8-Channel Wireless System with Handhelds, Headsets, and Lavaliere Mics – For The Ultimate Audio Performance
Unlock the full potential of your venue with this high-performance 8-channel wireless system. Designed for facilities and audio engineers who demand exceptional clarity and reliability, this premium package includes 4 handheld microphones, 4 single-ear wireless headsets, and 4 lavaliers with body packs – everything you need for flawless sound coverage.
Seamlessly portable and housed in a rugged 10-space rolling flight case, this system ensures secure, hassle-free transport and easy setup, making it the perfect solution for both mobile events and permanent installations. With 3 microphone options per channel, you can tailor the sound experience to your needs, while enjoying ultimate flexibility across all 8 channels.
Elevate your audio game with this complete, turnkey wireless system – available in multiple configurations to match your specific demands.
Experience the next level of wireless performance today!

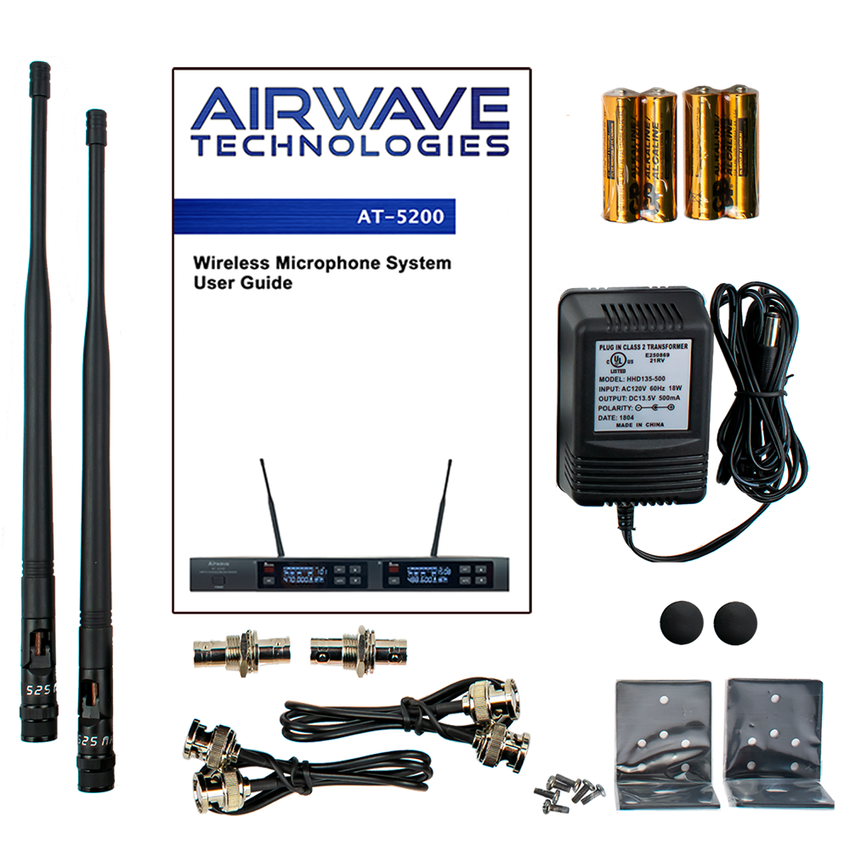

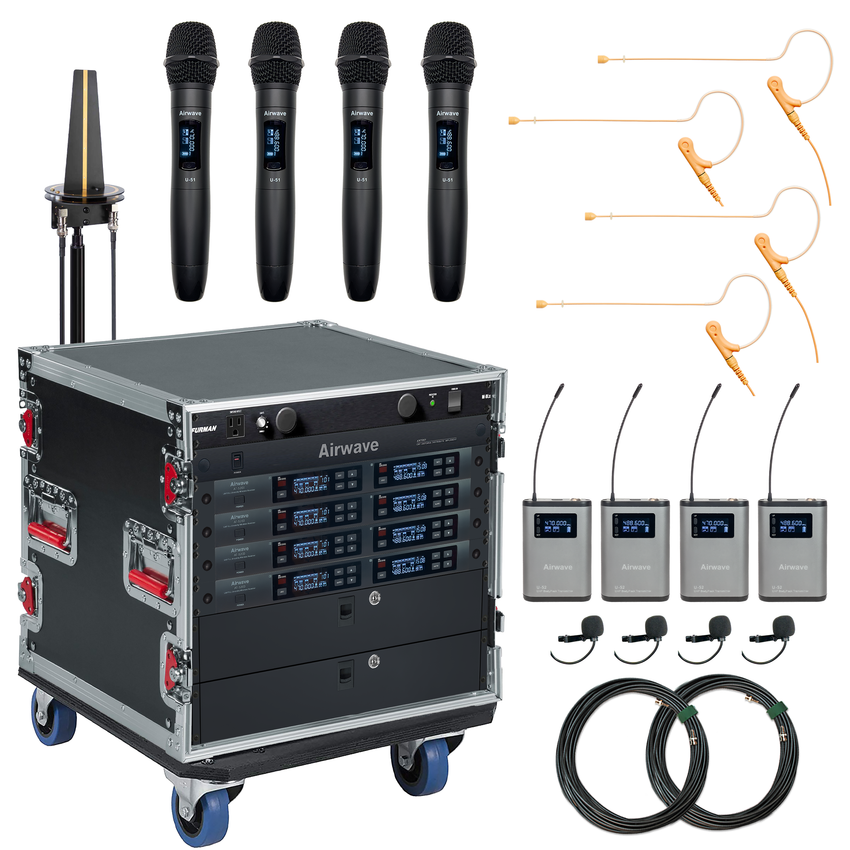

System Includes:
4 Airwave Technologies AT-5200 Dual Channel Wireless Systems

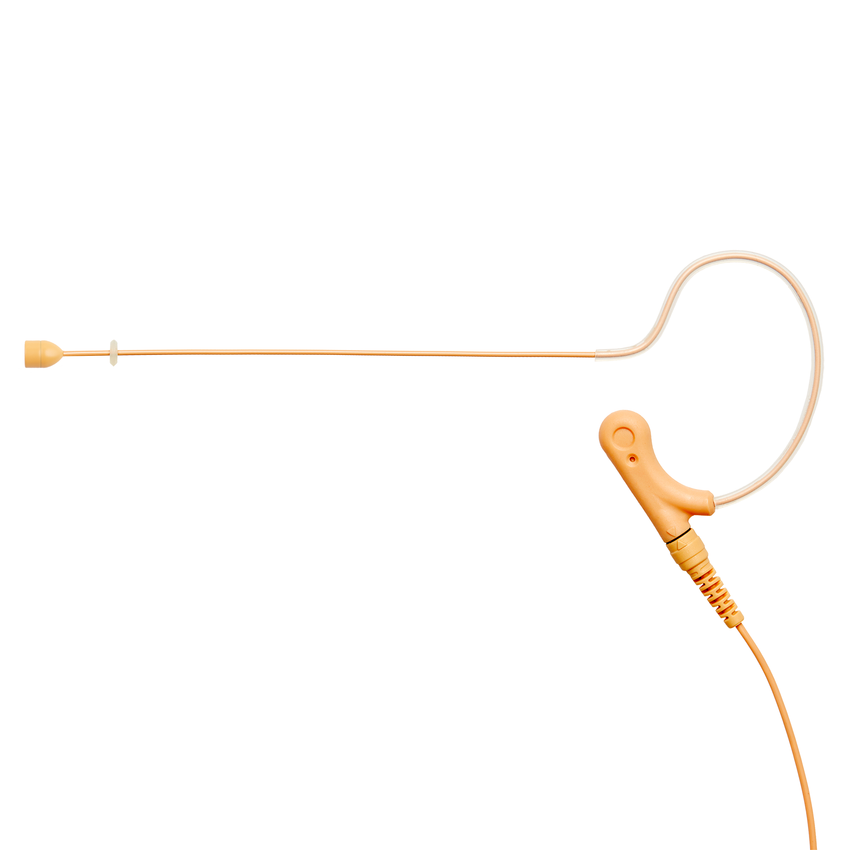

4 HSD-SLIMLINE+SE Single Ear Wireless Microphone Headsets
4 AT-U51 Wireless Handheld Microphones

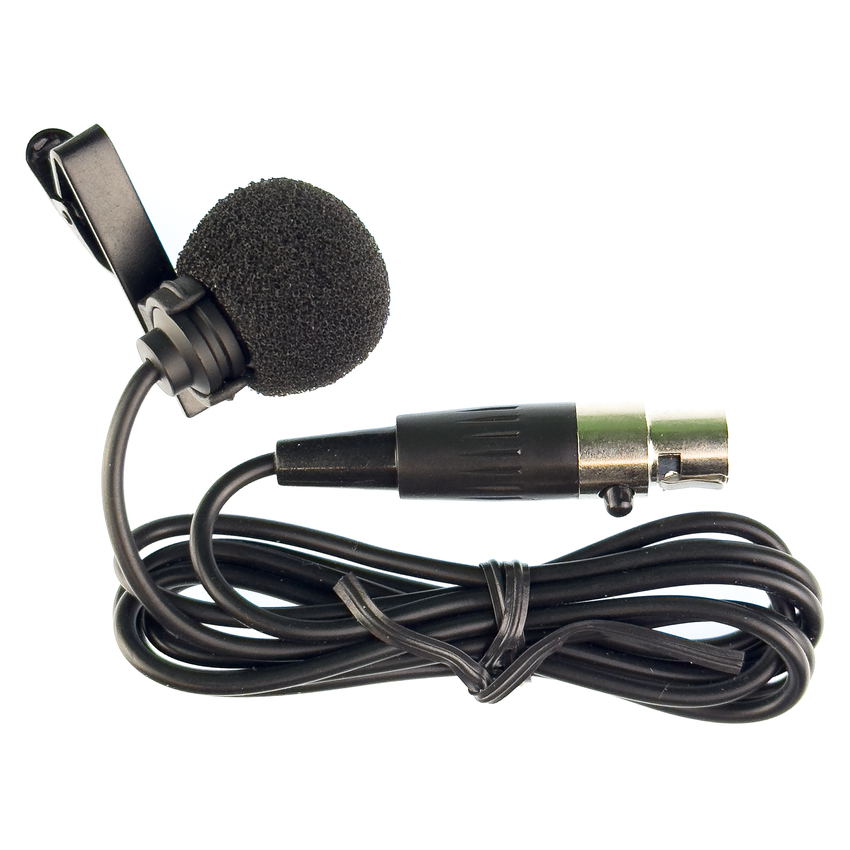

4 AT-LAV2 Lavalier Microphones
4 AT-U52 Wireless Body Packs
Furman M-8Lx Power Conditioner with Lights

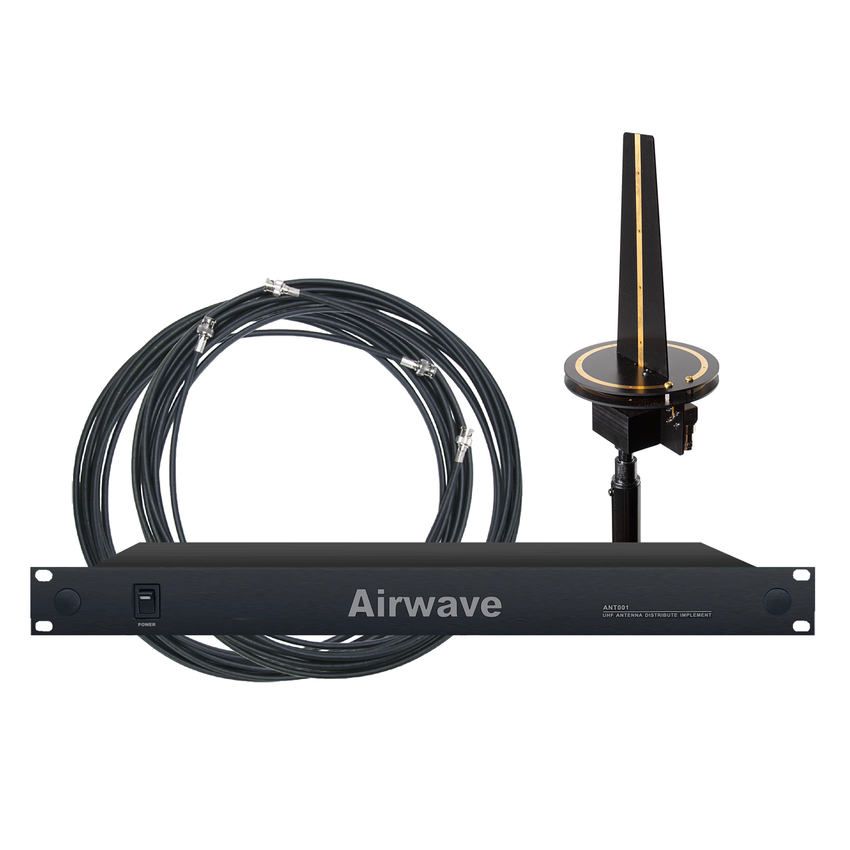

ANT-001 Rack Mount Antenna Distro
RF Venue Diversity Omni™ Antenna
2 Band-Pass Filters
2 25ft Antenna Cables
4 Wireless Microphone Clips
10 Space Flight Rack with Casters
2 Two Space Rack Drawers with Diced Foam
514-542 MHz
*Microphone stand for RF Venue DFIN not included
Wireless Microphone System Features
144 Digital switchable UHF Channels
Infrared Data Synchronization
Auto Button for Fast Frequency Sweep
Digital Adjustable Volume, Squelch and Gain Control
Battery Indicators on Handhelds and Base Station
Uses 2 AA batteries for up to 10 Hours of continuous use
System uses one rack space
1/4" and XLR mix outputs
Separate XLR channel output

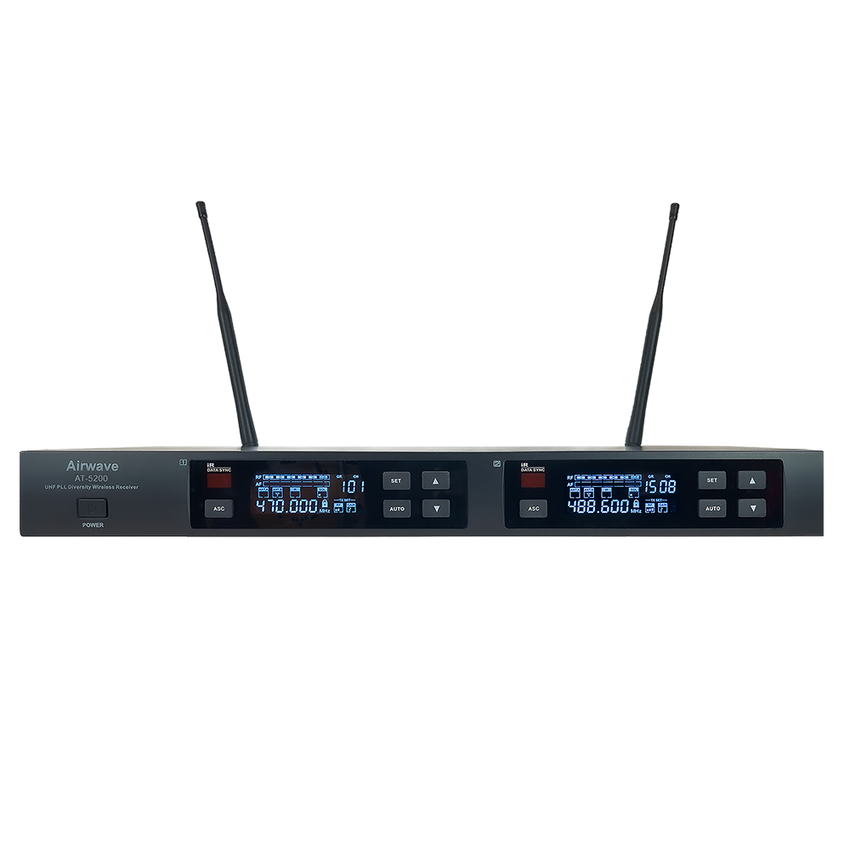

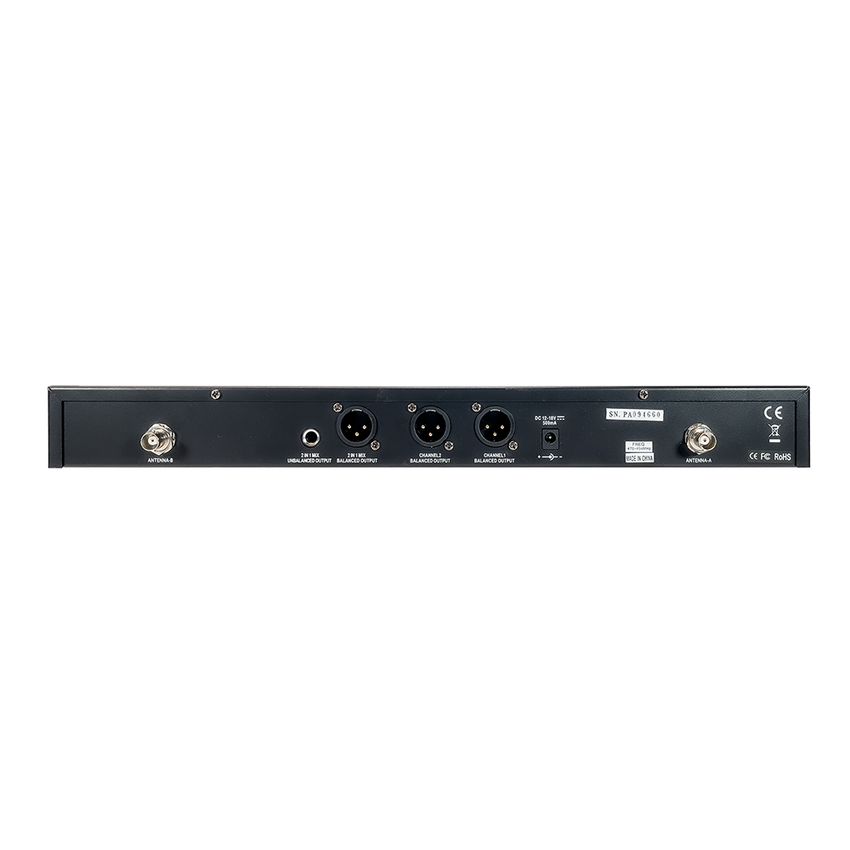

AT-5200 Wireless Microphone Receiver Features
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Band Width: 19MH / 28MHz
Working Range: 328'
Receiving Sensitivity: < -92dBm for 30dB S/N Ra
Frequency Response: 50Hz-15KHz (±3dB)
Maximum Frequency Offset: >+/-50KHz
Signal to Noise Ratio: >1 00dB (A)
THO: <1 % to 1 KHz
Gain Control Range: 0 to 63dB per 1dB Step
Dynamic Range: >102dB
Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV
Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector
Impedance: XLR: 3KO / 1/4-inch connector: 3KO
Antenna Connectors: 2 BNC 500
Display: LCD
Power Requirements: 12V/0.5A DC
Operating Temperature Range: 28°F - 122°F
Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)
Weight: 3.86 lb.
FCC ID: 2AINTU-51

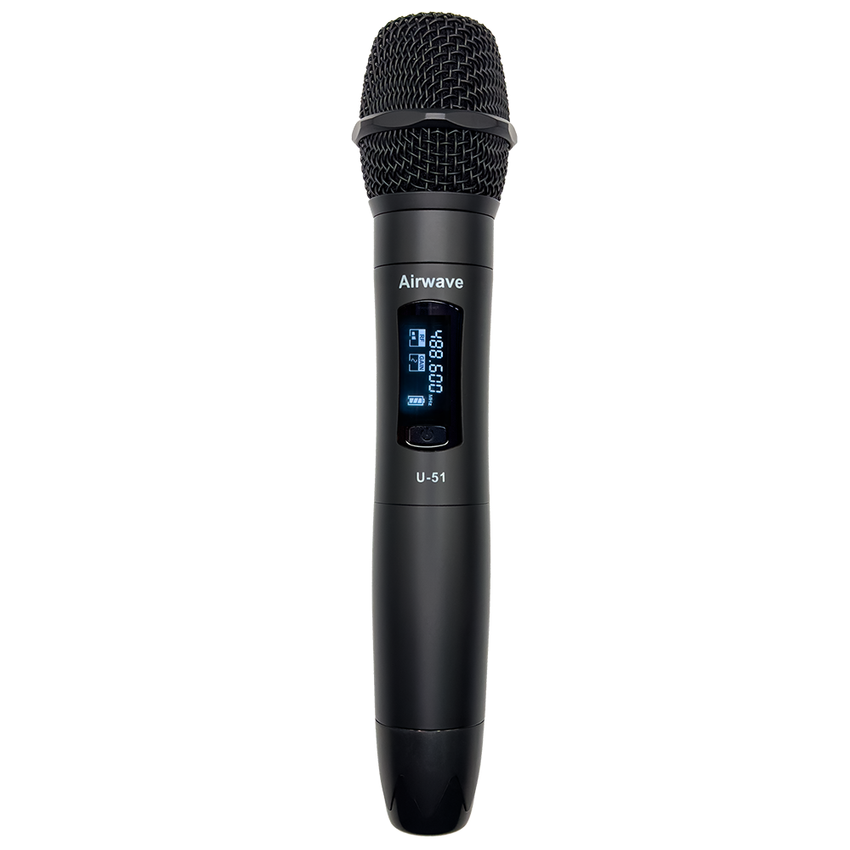

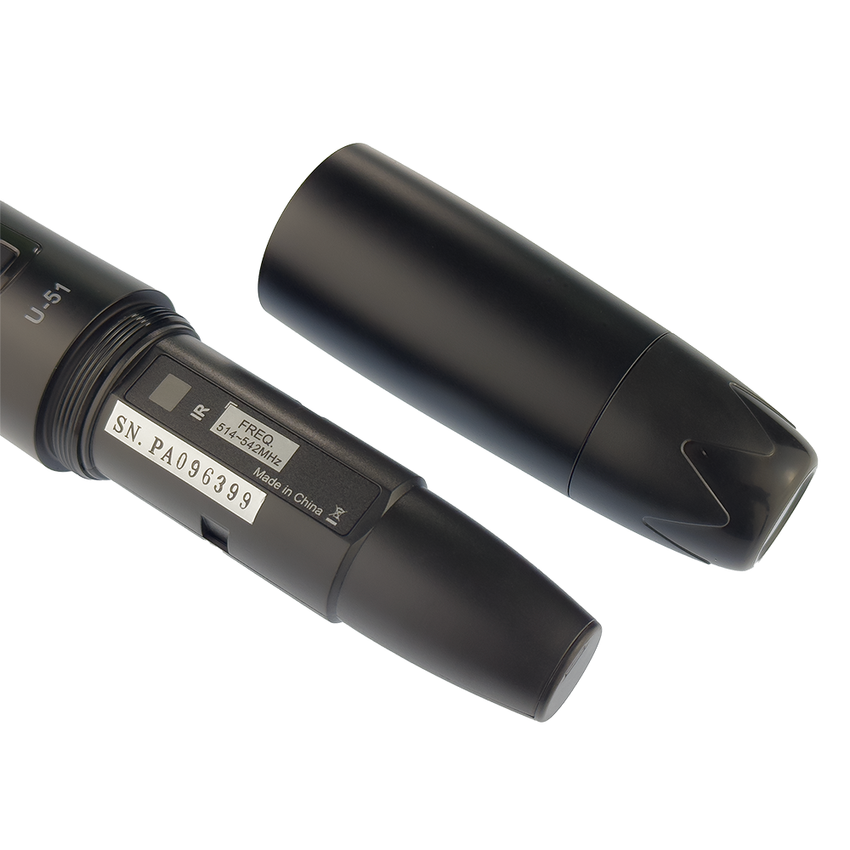

AT-U51 Handheld Microphone Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz

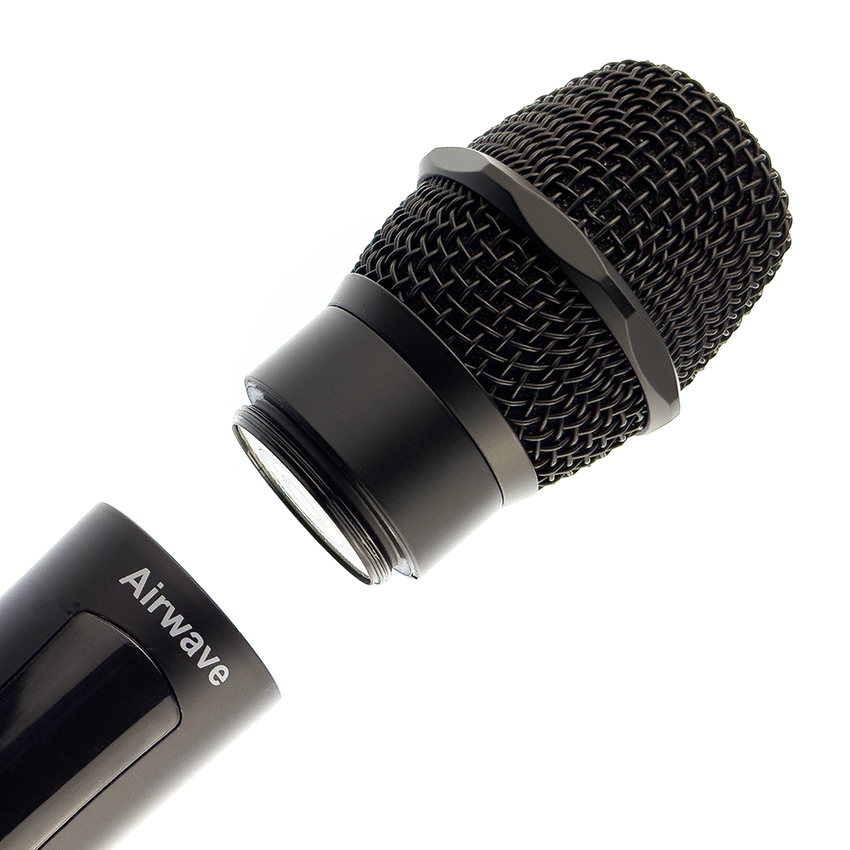

Replaceable Capsule
Infrared Data Synchronization
Capsule Frequency Response: 50Hz-15KHz (±3db)
Capsule Sensitivity: -50dB ± 2dB V/PA@1 KHz
Capsule Directivity: Single Point
Signal to Noise Ratio: >1 00dB (A)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO ± 30% @ 1 KHz
Output Impedance: 4000 ± 30% @ 1 KHz
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Display: LCD
Power Requirements: 2 x 1.5V (AA)
Battery Life: >8H/1300mAH
Dimensions: 9.84" x 1.97"
Weight: 12.7oz
FCC ID: 2AINTU-51

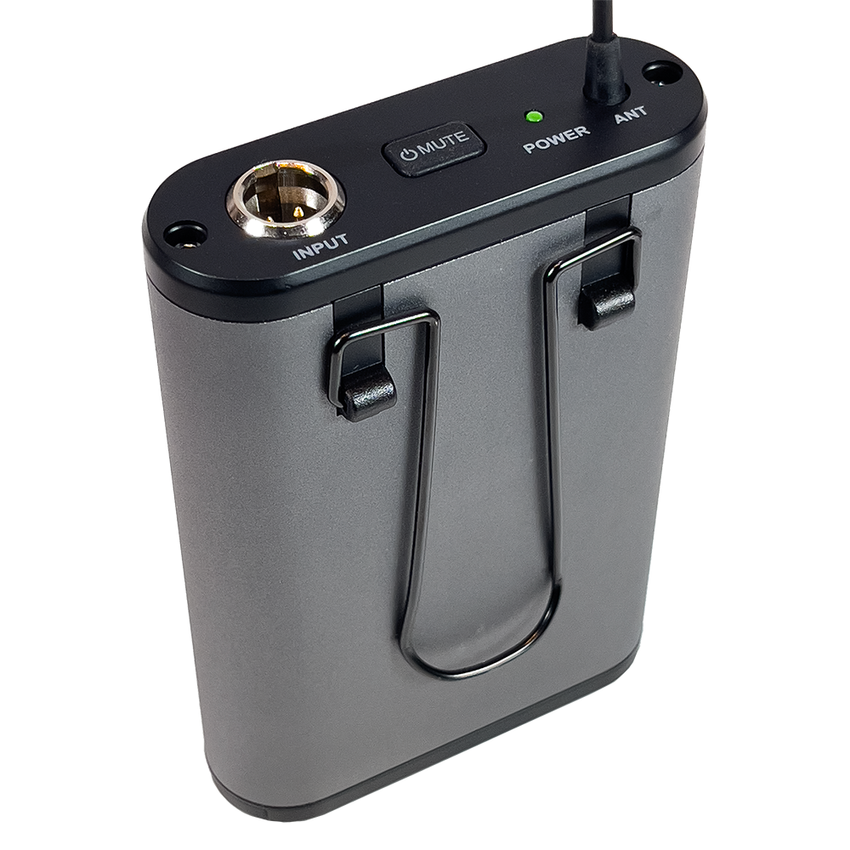

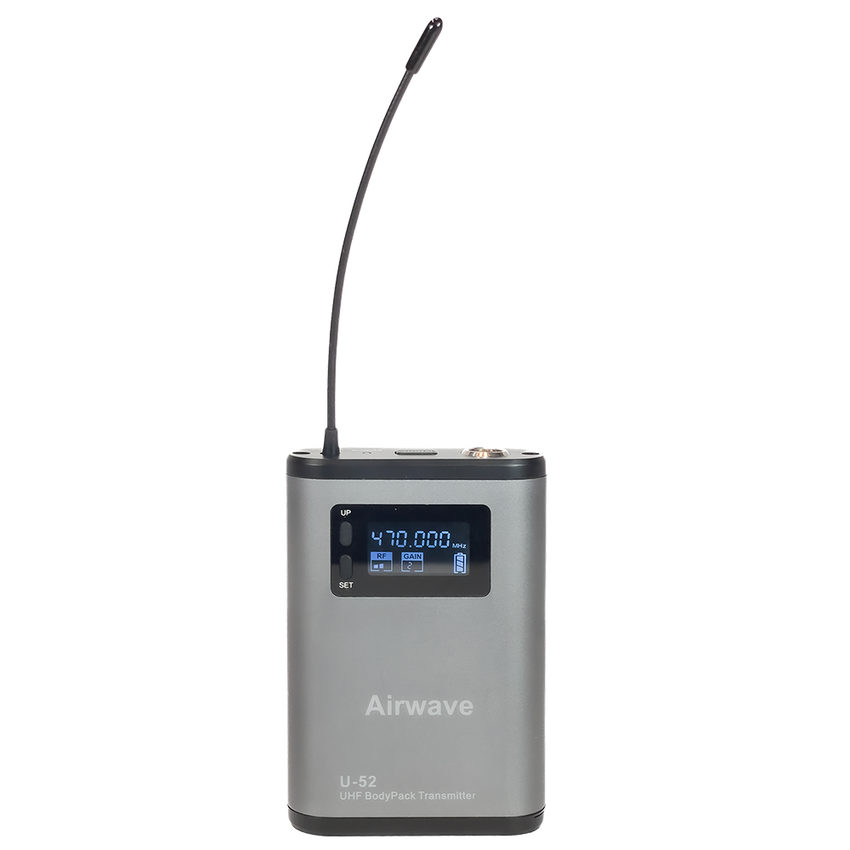

AT-U52 Body Pack Transmitter Specifications
Frequency Range: 470-489MHz / 514-542 MHz
Infrared Data Synchronization
Frequency Response: 50Hz-15KHz (±3db)
Gain Adjustment Range: 0 / -3/ -6 / -9 dB
Input Impedance: 5KO
Maximum Modulation Depth: >+/- 50KHz
3-Stage RF Power Adjustment: 2mW / 10mW / 30mW
Harmonic Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirements: 1.5V x 2(AA)
Battery Life: >1 0H/1300mAH
Dimensions: 6.5" x 2.56" x .91"
Weight: 4.59oz
FCC ID: 2AINTU-52
If using up to 2 units (up to 4 channels) the wireless handheld microphone system does not require an antenna combiner under normal conditions. If using 3 to 5 units (6 to 10 channels) the use of an approved antenna combiner is highly recommended.
